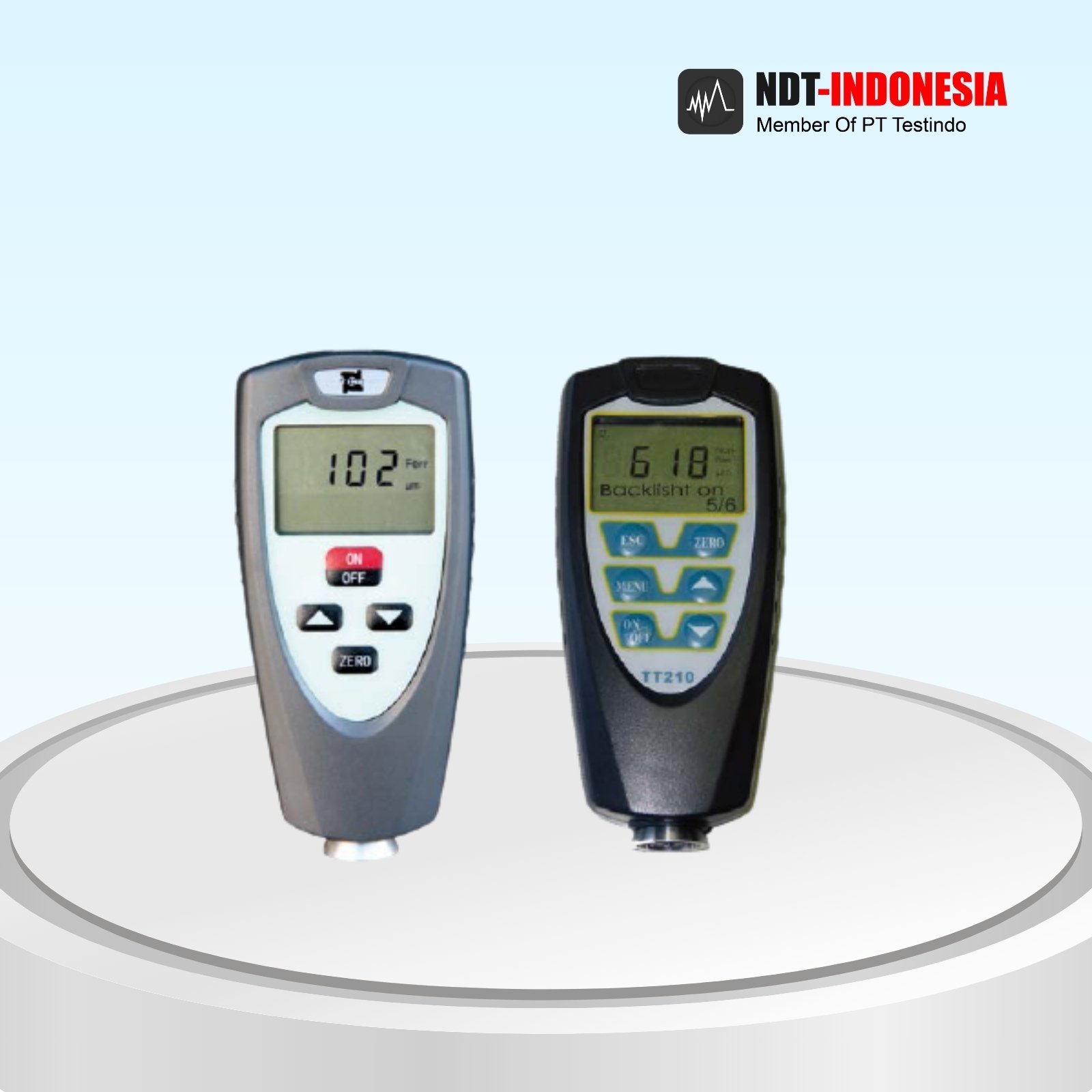

Portable Coating Thickness Gauge TIME®2511/TT210

Description

TIME®2511 is the most economical digital coating thickness gauge that uses magnetic induction method to measure non-magnetic coatings (e.g. paint, plastic, porcelain enamel, copper, zinc, aluminum, chrome etc.) on ferrous substrates (e.g. iron, nickel etc.). This paint thickness meter is ideal for painted surface testing, car paint inspection, coated material testing, and quality control applications. TT210 adopts both magnetic induction (F) and eddy current (N) measuring methods.

Spesification

Model TIME2511 TT210
Probe types F F N
Measuring methods

magnetic induction

magnetic

induction

eddy current
Measuring range 0 to 1250 μm 0 to 1250 μm

0~1250 μm

o~40μm (for chrome

plate on copper)

Minimum resolution 1μm 5μm 10μm
Tolerance Zero point calibration ±(3%H+1)μm ± (3%H+1.5)μm ±(3%H+1)μm

± (3%H+1.5)μm

Two point calibration H means the thickness of tested piece

±[(1~3)%H+1]μm

±[(1~3)%H+1.5]μm
Min. curvature radius (mm) Convexity 1.5 Convexity 1.5 Convexity 3

Min. testing area diameter

(mm)

Ø7

Ø7

Ø5

Critical thickness of

 substrate (mm)

0.5 0.5

0.3

Power supply Battery AAA (2pcs)
Working temperature 0~40°C
Dimensions (mm) 110×50×23
Weight (g) 100

Features

●TIME2511 adopts magnetic induction (F) measuring method.
●TT210 adopts two measuring methods: magnetic induction (F) and eddy current (N).
●Single point measurement mode for TIME2511; two measuring modes for TT210:

  Continuous / Single
●Easy zero point calibration
●TIME2511: 3 adjustable resolutions for different applications
●High speed data collection
●Automatically switch off
●Easy conversion between mm and inch

Standard Delivery

Standard Delivery
Main unit 1
Substrate 1
AAA 1.5V battery 2
Waist pack for main unit 1
TIME certificate 1
Warranty card 1
Instruction manual 1
