Smart Leeb Hardness Tester TIME5370 Cloud Measurement

Description

TIME Cloud Platform Leeb Hardness Tester TIME5370 Was Officially Launched. Automatic recording, real-time sharing, convenient service, opening a new era of smart testing. Data sharing anytime anywhere. Automatically record measurement data. Facilitate the traceability of quality control process. IP54 protection. One-key calling, quick submission of reports, service by your side.

Features

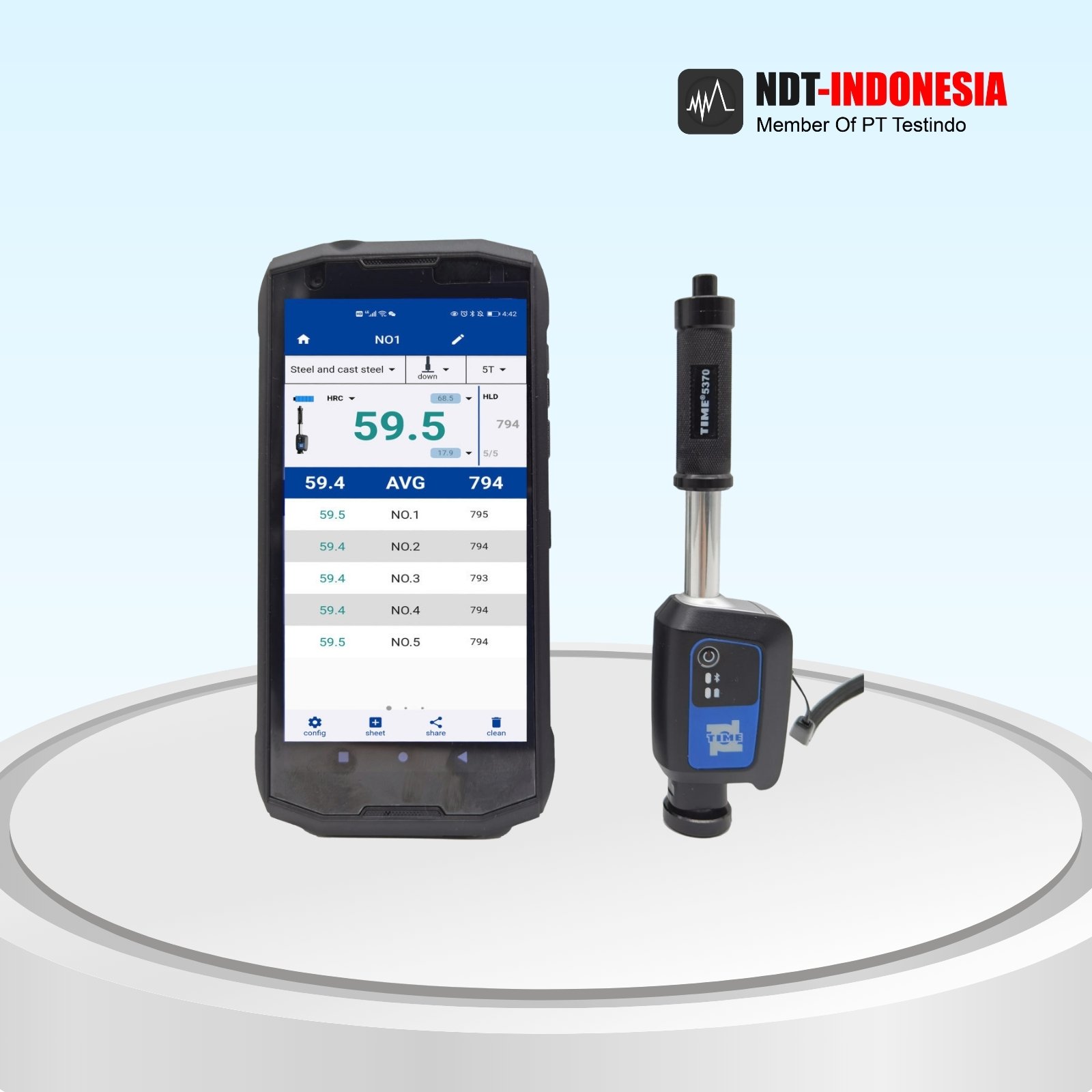

●The smart probe can test Leeb hardness by connecting to a mobile phone (currently limited to Android), and the two are connected wirelessly via Bluetooth
●The hardness value measured by the smart probe can be wirelessly transmitted to the smart phone in real time through the APP “TIME Smart Test”
●The smart probe has good portability, small size, with a lanyard.
●The smart probe uses a built-in rechargeable lithium battery, which can be charged wirelessly.
●The dustproof and waterproof grade of the smart probe reaches IP54, which can adapt to the harsh environment.
●Automatically identify the impact directions.
●The upper and lower limits of the hardness value can be set in advance, and alarm when out of the limits, which is convenient for batch test.
●With self-define material function, users can generate exclusive hardness conversion table through comparison test.
●Measurement records can add multiple types of additional information such as pictures, videos, and positioning.
●It can realize rich post-data processing, such as cloud storage, customized work sheets, real-time data sharing, report generation, etc.
●With automatic shutdown function, and the duration of automatic shutdown can be adjusted or closed.
●The software of the smart probe can be upgraded remotely.
●Smart phones can be connected to the TIME Internet of Things platform to achieve richer functions.

Spesification

Measuring range (170-960)HLD
Hardness scale HL, HB, HRB, HRC, HRA, HV, HS
Measuring direction 360°
Tolerance ±6HLD(when HLD=760±30)
Repeatability 6HLD(when HLD=760±30)
Interface Bluetooth 4.2
Continuous working time 8 hours
Power supply 6V/500mA
Humidity ≤90%
Operating temperature 0℃~40℃
Dimensions (mm) 158×40×25
Weight (g) 85

Standard Delivery

●Smart probe

●Support ring

●Cleaning brush

●Wireless charger

●Lanyard

●TIME certificate

●Warranty card

●Instruction manual
