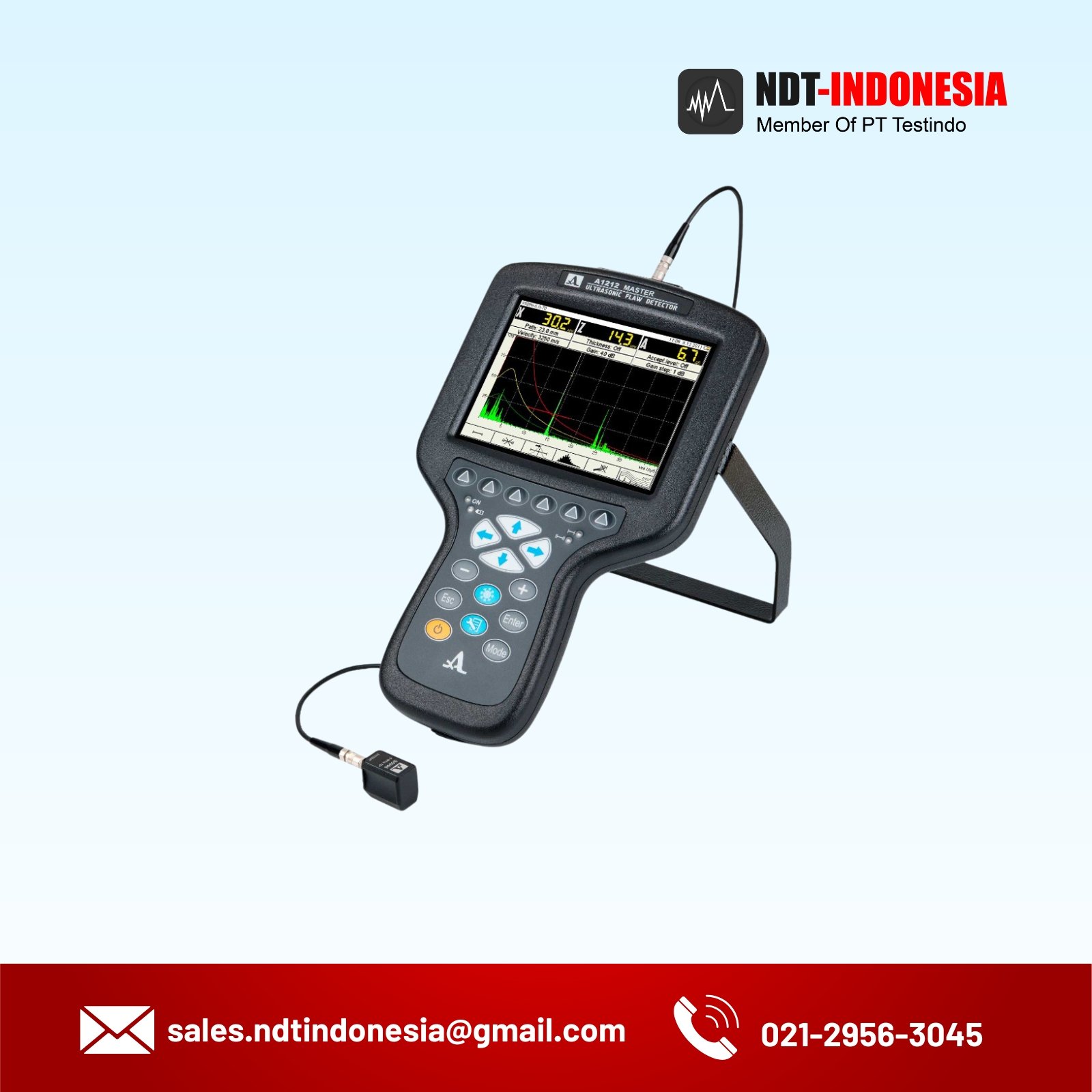

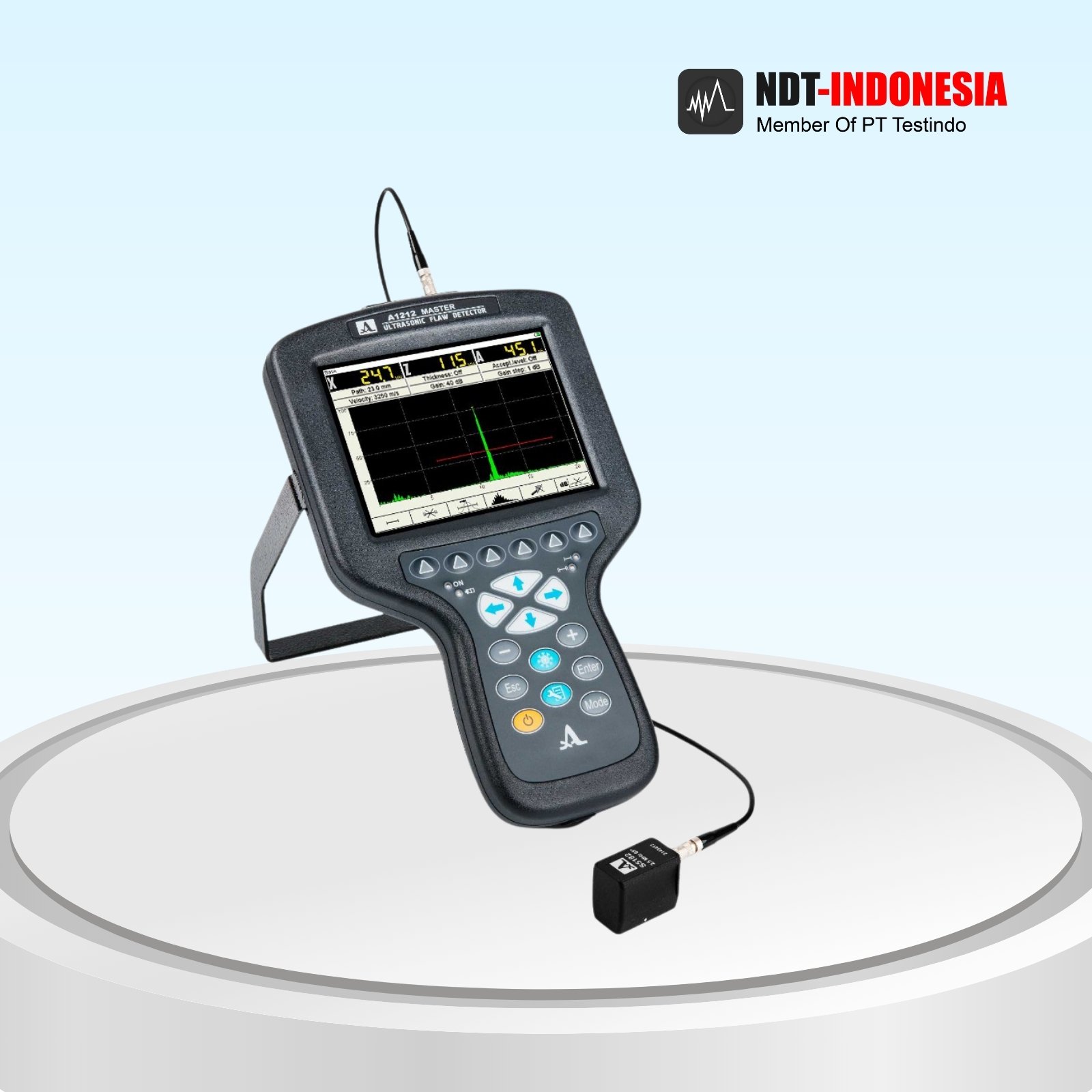

Ultrasonic Flaw Detectors A1212 Master

Category: Tags: , , , Brand:

Description

Detektor cacat ultrasonik portabel ukuran kecil serbaguna. Alat ini mampu melakukan metode inspeksi ultrasonik standar dan tujuan khusus, memberikan efisiensi dan akurasi pengukuran yang tinggi. Semua fitur detektor cacat modern ada dalam casing yang ringkas. Ideal untuk bekerja di tempat-tempat yang sulit dijangkau. Dapat digunakan dalam kondisi sempit dan sulit berkat bobot ringan dan ukuran kecilnya. Sangat praktis untuk bepergian. Casing ergonomis dari plastik tahan guncangan memungkinkan perangkat digenggam dengan satu tangan. Layar warna besar berkontras tinggi dengan resolusi tinggi (640*480 piksel) memungkinkan Anda bekerja dalam waktu lama tanpa membuat mata tegang. Komentar suara dapat ditambahkan ke gambar yang tersimpan dengan bantuan headset Bluetooth hands-free. Unit elektronik dapat dipasang pada bantalan khusus agar kedua tangan bebas dan dapat bekerja dengan nyaman di tempat-tempat yang sulit dijangkau serta di ketinggian. Penutup lembut khusus dengan tudung matahari melindungi unit elektronik dari kotoran, air, dan debu, serta dari cahaya eksternal dan sinar matahari.

Application

  • Weld joints inspection.
  • Locating corrosion, cracks, internal stratifications and other flaws.
  • locating and sizing up flaws (discontinuities and inhomogeneities) in metal and plastic objects.
  • Thickness measurement.

Digital TCG allows to modify the signal, basing on an arbitrary function set up by 32 node points. Mode points are set up, modified and deleted at a special TCG editing mode. Setup of TCG is performed to get pulses of equal height from equal reflectors providing correct sizing of flaws through the whole thickness of the object of inspection. DGS-diagrams for single-crystal transducers show three curves on the screen, representing the acceptance, reporting and examination levels. The equivalent area of discontinuity is evaluated automatically. With feature you avoid manual evaluations of flaw area to increase the testing efficiency significantly.

DAC-curves show three curves on the screen, representing the acceptance, reporting and examination levels. This allows you correctly estimate the validity of the detected defects, according to the current normative and methods of ultrasonic testing.

Spesification

Maximum thickness of the tested object (echo method, steel)

3000 mm
Rated operating frequencies

0,5 – 15,0 MHz
Material ultrasound velocity setting range

1 000 – 14 999 m/s
Operating frequencies deviation from rated

± 10%

Inspection range with the normal beam transducers:

S3568 2.5A0D10CL

D1771 4.0A0D12CL

7 to 6.000 mm

2 to 3.000 mm
Permissible basic measurement accuracy for thickness D with a normal transducer

±(0,01D+0,2) mm
Measurement accuracy for depth defect H with a normal transducer

±(0,01H+0,2) mm
Flaw coordinate measuring range (on steel) with an angled transducer 60° depth H

3 – 1300 mm
Permissible basic flaw coordinate measuring accuracy with an angled transducer 65° depth H

±(0,03H+1) mm
Flaw coordinate measuring range (on steel) with an angled transducer 70° depth H

3 – 500 mm
Permissible basic flaw coordinate measuring accuracy with an angled transducer 70° depth H

±(0,03H+1) mm
distance on surface L

±(0,03L+1) mm
Gain regulation range

from 0 to 100 dB
Dynamic TGS range, not less than

20 dB
Rated battery voltage

11,1 V
Operating time at normal weather conditions, not less than

8 h
Operating temperature range

from -30 to +55ºC
Display type

color TFT
Display resolution

640 х 480 pixels
Electronic unit size

260 х 156 х 43 mm
Weight with batteries

800 g

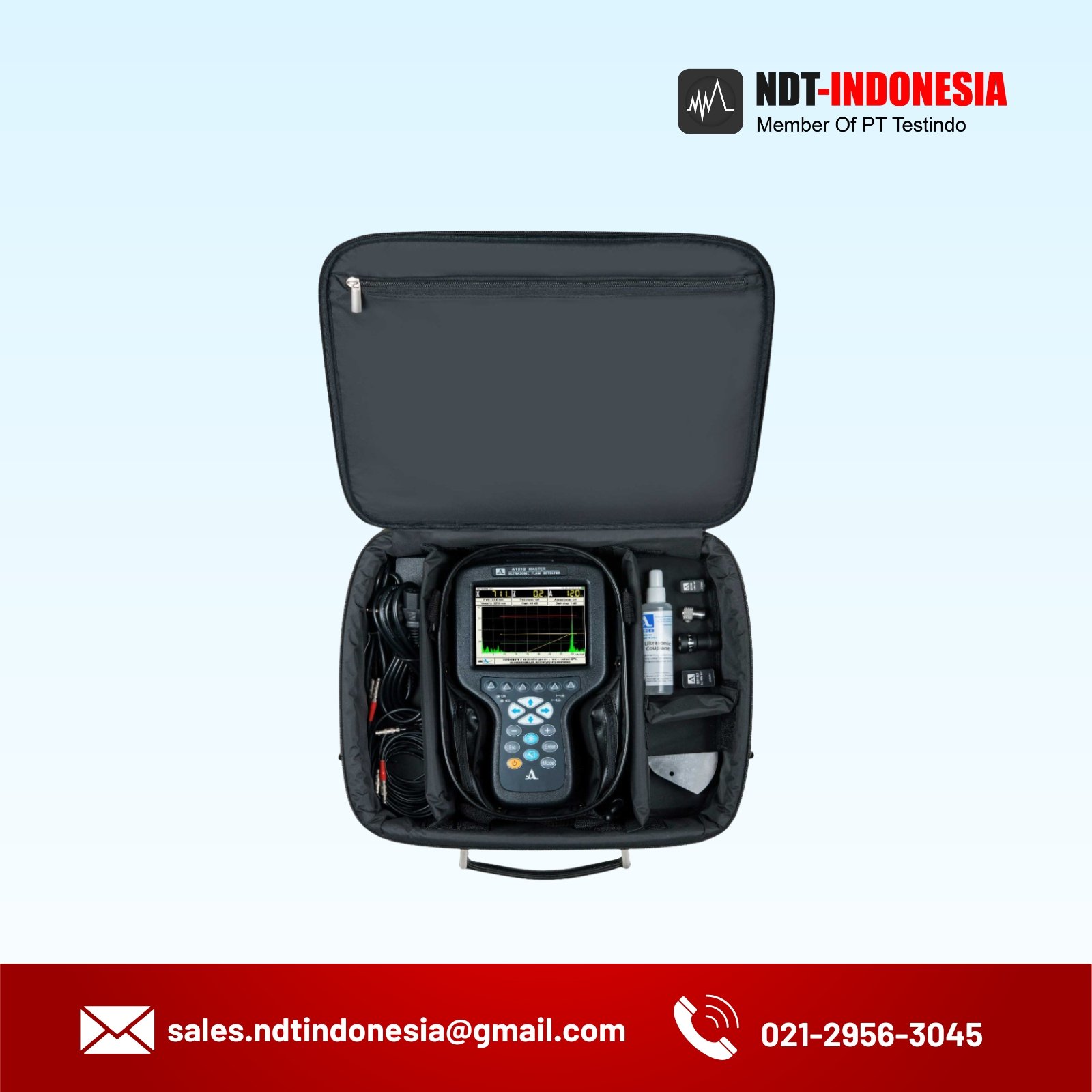

Delivery Kit

• A1212 MASTER – ultrasonic flaw detector
• D1771 4.0A0D12CL transducer
• S3568 2.5A0D10CL transducer
• S5182 2.5А45D12CS transducer
• S5096 5.0А45D6CS transducer
• LEMO 00 – LEMO 00 double cable,1,2 m
• LEMO 00 – LEMO 00 single cable,1,2 m
• Network adapter, cable
• USB cable
• Calibrating sample V2/25
• Soft cover
• Carrying map case
• Bag
