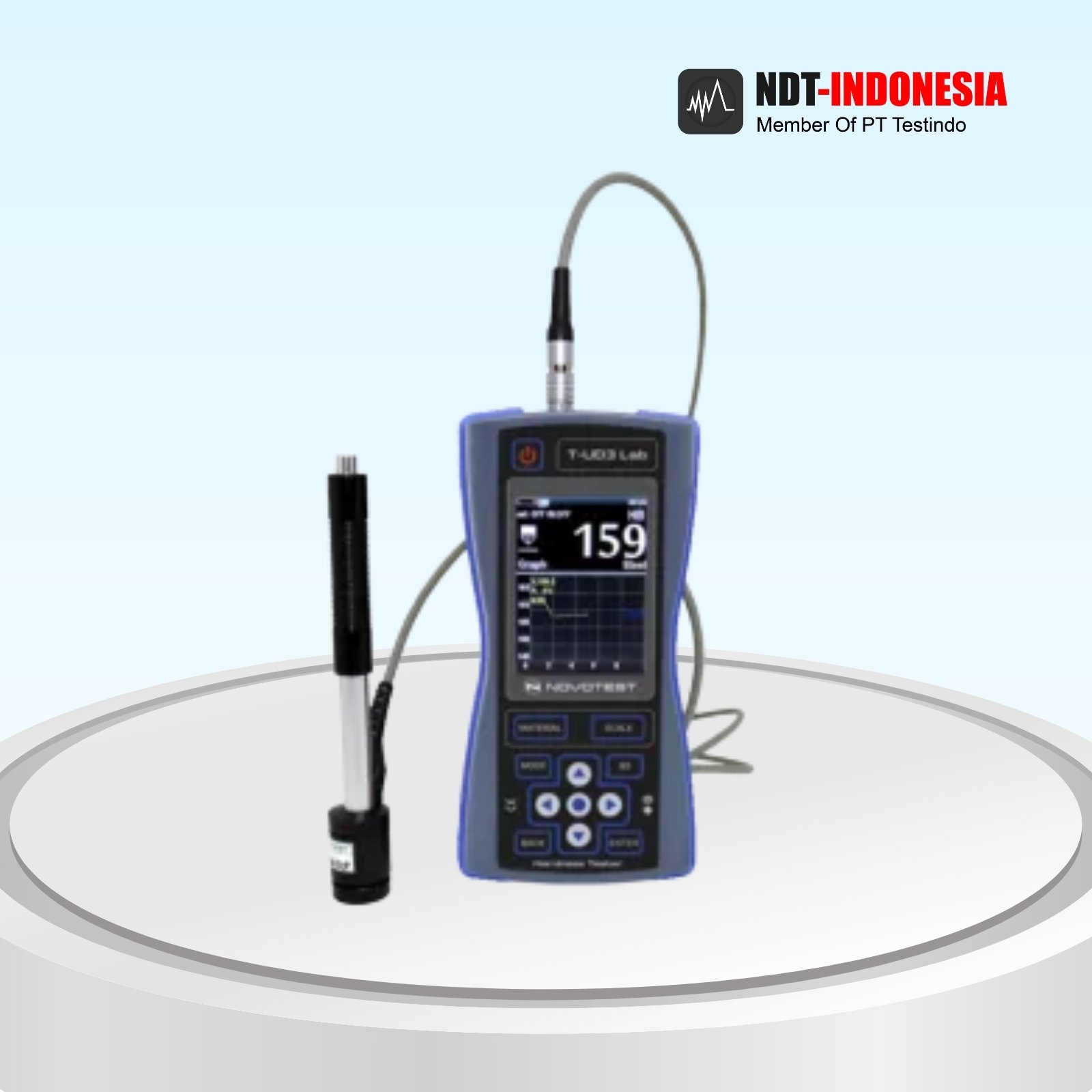

Leeb-Hardness-Tester-NOVOTEST-T-D3

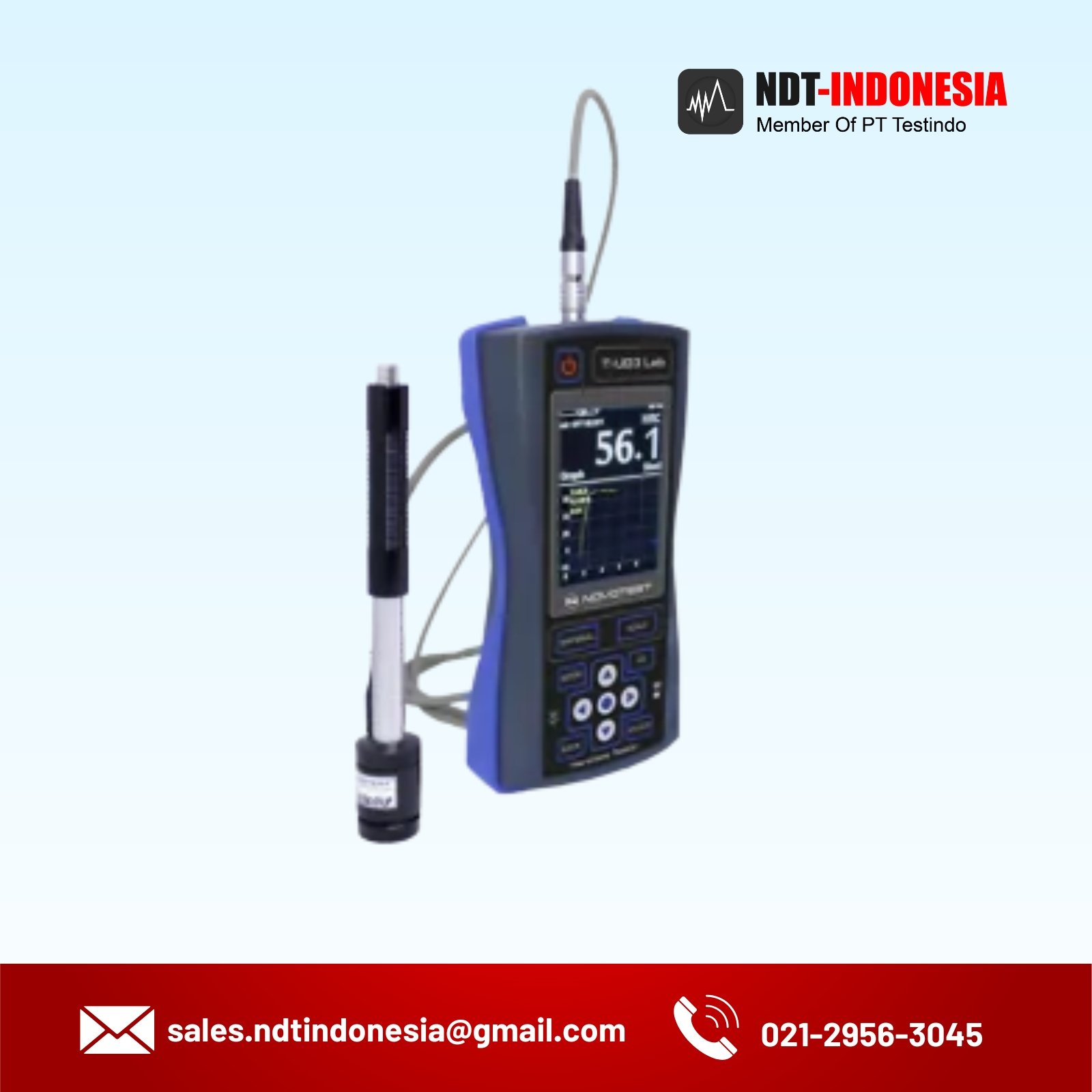

Leeb Hardness Tester NOVOTEST T-D3 - Image 2

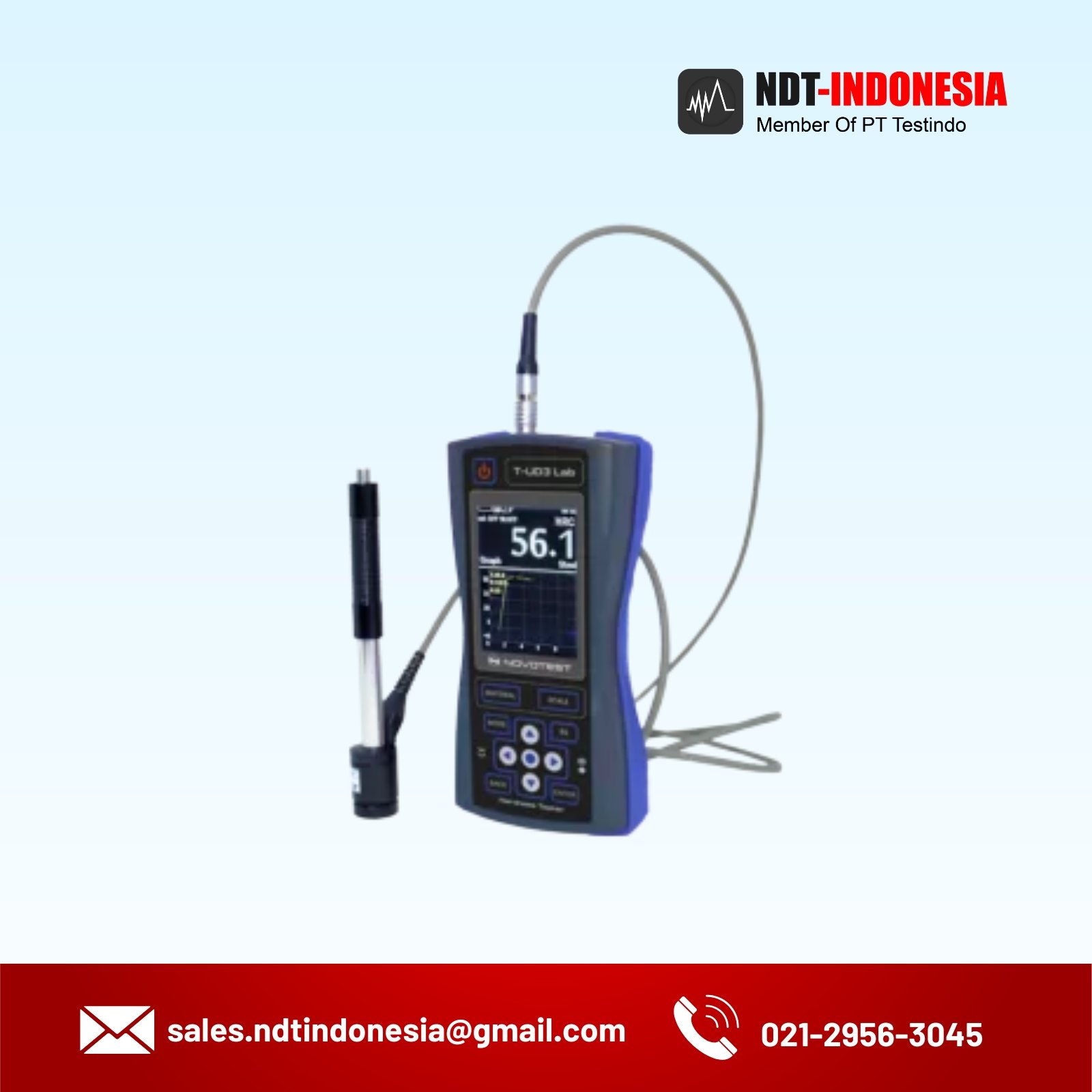

Leeb Hardness Tester NOVOTEST T-D3 - Image 3

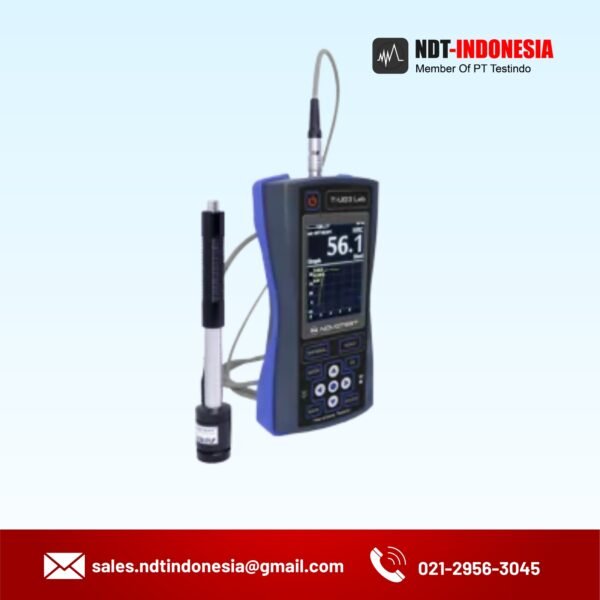

Leeb Hardness Tester NOVOTEST T-D3

Metode Leeb (ASTM A956) adalah yang paling populer untuk pengujian kekerasan logam portabel karena kesederhanaannya, tidak memerlukan keterampilan khusus; metode ini ideal untuk produk besar di atas 5 kg dan tebal 10 mm, tetapi juga dapat mengukur bagian yang lebih kecil dengan pemasangan yang tepat.

Category: Tags: , , , Brand:

Description

Lakukan pengukuran kekerasan, kalibrasi perangkat, atur tampilan nilai yang nyaman, simpan hasil pengukuran kekerasan, sinkronkan arsip dengan perangkat lain dan PC, transfer hasil pengukuran ke rekan kerja Anda – semua ini tersedia di ponsel pintar Anda berkat aplikasi NOVOTEST khusus untuk Android.

Penguji kekerasan belum pernah memiliki kesempatan seperti ini! Dengan koneksi Bluetooth, ponsel pintar Anda terhubung ke penguji kekerasan dan Anda memiliki perangkat yang benar-benar baru – penguji kekerasan generasi baru! Antarmuka yang intuitif, banyak peluang untuk mendokumentasikan hasil, akses internet, layar sentuh, kamera, mikrofon, dan penerima GPS di ponsel pintar mengubah penguji kekerasan Anda menjadi sesuatu yang benar-benar unik dan sebelumnya tidak dapat diakses.

Dengan Aplikasi NOVOTEST, Anda dapat:

  •  pengaturan dan kalibrasi alat uji kekerasan;
  •  menampilkan hasil pengukuran secara real-time dalam bentuk numerik dengan konstruksi grafik, histogram, atau statistik;
  •  mengambil gambar objek uji beserta penanda kekerasannya; membuat video produk yang dikontrol;
  •  merekam catatan audio dari objek uji;
  •  menyimpan geolokasi pengukuran secara otomatis di Google Maps;
  •  menampilkan Google Maps dengan penanda lokasi pengukuran dan kemampuan untuk melihat hasil pengukuran tersebut;
  •  menampilkan kalender pengukuran (menyajikan arsip dalam bentuk pengukuran yang dikelompokkan berdasarkan tanggal);
  •  menyusun laporan akhir pengukuran yang komprehensif;
  •  mengirimkan laporan akhir melalui email, messenger (atau cara lain yang nyaman) langsung dari aplikasi;
  •  struktur arsip pengukuran yang fleksibel – sepenuhnya mirip dengan explorer biasa, dengan kemampuan untuk membuat folder dan file dengan nama apa pun;
  •  sinkronisasi dengan PC dan ponsel pintar lainnya; – layanan cloud untuk menyimpan arsip pengukuran;
  •  sinkronisasi otomatis dan manual arsip pengukuran cloud antar perangkat;
  •  meluncurkan mode navigasi Google, membangun rute, dan mendampingi ke titik pengukuran dilakukan
  • kemampuan untuk menyimpan arsip perangkat lain dengan Bluetooth dalam satu aplikasi.

Keunggulan utama Leeb Hardness Tester NOVOTEST T-D3:

Operation under any conditions

TIMBANGAN DAN BAHAN

Perangkat ini dilengkapi dengan kalibrasi awal untuk berbagai skala dan bahan, sehingga menjadikannya universal.

TIMBANGAN: HRC, HRB, HB, HV, HL, MPa.

BAHAN: baja, baja paduan, besi cor, baja tahan karat, aluminium, perunggu, kuningan, tembaga.Perangkat ini juga dapat dikalibrasi untuk semua skala dan bahan (skala USER).













T-D3-hardness-tester-1-1024x683 bluePERSYARATAN RENDAH UNTUK KUALITAS PERMUKAAN DAN STRUKTUR MATERIAL

Penguji Kekerasan Leeb NOVOTEST T-D3 dapat digunakan untuk produk dengan permukaan yang belum dipersiapkan dengan baik (kekasaran 3,2 Ra ke atas), serta untuk material dengan struktur berbutir kasar, seperti besi cor dan lainnya.



BERBAGAI JENIS PROBE

Penguji Kekerasan Leeb NOVOTEST T-D3 dapat digunakan dengan berbagai jenis probe, tergantung pada tugas dan cakupannya.

ASTM-A956_Leeb

Advantages

  • Large full color graphic display with bright backlighting
  • Various measurement modes: statistic, graph, histogram, smart, signal
  • Calibration of any scale in any range
  • Convenience and ease of measurement
  • Optimized number of buttons
  • 88 combinations of materials and hardness scales (calibrations)
  • Photofixation of tested objects
  • Extended temperature range (frost, down to – 40°C)
  • Internal memory and communication with PC
  • New, intuitive menu with tips on the buttons
  • Optional wireless mini printer
  • Water resistant case
  • Rubber protected bumper

Spesification

Leeb probe types
  • D
  • DC
  • DL
  • C
  • D+15
  • E
  • G
Measuring range for steel
  • HRC:20~70
  • HB:90~650
  • HV:230~940
  • Tensile strength, MPa: 370~1740
  • User calibrations for any range (for example: HV100-3000)
Measuring accuracy
  • HRC: 2HRC
  • HB: 10HB
  • HV: 15HV
Standards
  • ASTM A 956
  • ASTM E 140
  • ASTM A 370
  • ISO 16859
  • DIN 50156
  • GB/T 17394
  • JB/T 9378
  • ISO 18265
Indenter Hardened ball (Leeb)
Measuring direction Any direction 360°
Data storage Limited only by the memory card up to 32Gb
Communication Upload data to PC and export as a spreadsheet (USB cable and software included )
Hardness scale
  • Leeb probe – HRC, HRB, HB, HV, HL, MPa
  • Additional custom scales for calibration
Materials
  • Dynamic (Leeb) pre-calibrated for steel, alloy steel, cast iron, stainless steel, aluminum, bronze, brass, copper
  • Additional custom materials for calibration
Data display
  • Angle (Leeb)
  • Single test result
  • Max, Min, Average of tests
  • Number of tests
  • Deviation
  • Var. coeff.
  • Histogram
  • Signal and Smart Mode (Filter of incorrect measurements)
Language
  • English
  • German
  • French
  • Polish
  • Russian *additional languages available by request
Indication Color LCD display (320×240)
Operating environment
  • Temperature:-20°C~40°C
  • Humidity: 30%~80%R.H.
Power supply DC 4,5V (3 pcs batteries AA)
Instrument dimensions 160x75x30mm
Net weight Approx. 0.3kg (Without probe)
Battery life Approx. 10 hours.

Available options

  • Protective Pouch with Straps for T-UD3
  • Android smartphone or tablet (optionally with IP65) for NOVOTEST Lab App
  • Additional Leeb probes: – Dynamic probe Type DC-R – Dynamic probe Type DC-R-mini – Leeb probe Тype D – Leeb probe Type DL – Leeb probe Type G – Leeb probe Type D+15 – Leeb probe Тype C – Leeb probe Type E
  • Set of support rings for Leeb probe
  • Cable for Leeb probe
  • Impact bodies for Leeb probes
  • After the purchase if needed, can be ordered dynamic Leeb probe with activation code to convert to Combined hardness tester T-UD3 (Lab) with two types of probes (UCI+Leeb). Additional UCI probes: – UCI Probe U1 L3 (10N/HV1) – UCI Probe U1 L3 (50N/HV5) – UCI Probe U1 L3 (98N/HV10)
98N (10 kgf) Special type of probe with increased load. To carry out the measurement, it is necessary to apply a load of 10 kgf (set automatically by the probe).Low surface cleanliness requirements.
  • Heat-treated and cemented parts with poorly prepared surface.
  • Measurement on blades, on the inner surface of pipes, holes with high roughness.
50N (5 kgf) The main type of probe for solving most hardness measurement tasks. To carry out the measurement, it is necessary to apply a load of 5 kgf (set automatically by the probe).Medium surface cleanliness requirements.
  • Heat-treated and cemented parts, such as shafts, turbines, gears, teeth, welds, heat affected zones.
  • Measurement in grooves, on teeth, in grooves, on radius surfaces.
  • Measurement on the blades, on the inner surface of the pipes, holes.
10N (1 kgf) Probe with reduced load – designed to measure the hardness of products with increased requirements for the size of the print (polished, polished surfaces), to measure the hardness of thin surface hardened layers. For the measurement, a load of 1 kgf must be applied.More demanding on surface cleanliness, compared with U1 (50N).
  • Nitrided and cemented surface layers of molds, dies, dies, thin-walled parts.
  • Bearings, tooth flanks, saws.
  • Hardness measurement of thin hardening coatings.
  • Measurement on products after thorough machining.
  • Hardness test blocks: For Leeb probes: – Leeb Hardness Test Block 530±40 HLD – Leeb Hardness Test Block 630±40 HLD – Leeb Hardness Test Block 790±40 HLD – Leeb Hardness Test Block HLGFor UCI probes: – Rockwell Hardness Test Block 25HRC (25±5 HRC) – Rockwell Hardness Test Block 45HRC (45±5 HRC) – Rockwell Hardness Test Block 65HRC (65±5 HRC) – Vickers Hardness Test Block 200HV (200±50 HV1) – Vickers Hardness Test Block 300HV (300±50 HV1) – Vickers Hardness Test Block 450HV (450±50 HV1) – Vickers Hardness Test Block 800HV (800±50 HV1) – Vickers Hardness Test Block 200HV (200±75 HV5) – Vickers Hardness Test Block 300HV (300±50 HV5) – Vickers Hardness Test Block 450HV (450±75 HV5) – Vickers Hardness Test Block 800HV (800±50 HV5) – Vickers Hardness Test Block 200HV (200±75 HV10) – Vickers Hardness Test Block 300HV (300±50 HV10) – Vickers Hardness Test Block 450HV (450±75 HV10) – Vickers Hardness Test Block 800HV (800±50 HV10) – Brinell Hardness Test Block 100НВ (100±25 HB 10/1000/10) – Brinell Hardness Test Block 200HB (200±50 HB 10/3000/10) – Brinell Hardness Test Block 300HB (300±50 HB 10/3000/10) – Brinell Hardness Test Block 400HB (400±50 HB 10/3000/10) – Brinell Hardness Test Block 600HB (600±50 HB 10/3000/10) *other hardness test blocks are available as well.
  • Portable grinding machine
  • Wireless printer (by request)
  • Different colors of rubber bumper protected case
  • AA batteries
  • Battery chargers
  • Transportation plastic case for hardness tester
  • Calibration certificate issued by the third-party metrology laboratory (ILAC)
  • Certificate of origin issued by the Chamber of Commerce and Industry
  • Certificate of Origin and Quality from NOVOTEST
  • CE certificate
  • Extended warranty period up to 3 years
  • Individual modification to customer requirements

Standard package

“Basic” kit:

  • Electronic unit Leeb Hardness Tester NOVOTEST T-D3 (Lab)
  • Leeb D type probe – 1pc (other types by request)
  • Accessory package: – AA batteries – 3 pcs – USB charger – USB cable for PC – PC software: — Online – INFO/USB-connect — Offline – NOVOTEST USB-Connect – NOVOTEST LAB App for Android gadgets – Operating manual/Quick guide – Test certificate – Transportation plastic case

“Advanced 1” kit:

  • Electronic unit Leeb Hardness Tester NOVOTEST T-D3 (Lab)
  • Leeb D type probe – 1pc (other types by request)
  • Protective Pouch with Straps for T-UD3
  • Hardness Test Block HLD or HLG (for Leeb probe) – 1pc
  • Accessory package

 “Advanced 2” kit:

  • Electronic unit Leeb Hardness Tester NOVOTEST T-D3 (Lab)
  • Leeb D type probe – 1pc
  • Protective Pouch with Straps for T-UD3
  • Leeb probe Type DL or DC-R or DC-R mini or G
  • Hardness Test Block HLD or HLG (for Leeb probe) – 1pc
  • Accessory package

“Advanced 3” kit:

  • Electronic unit Leeb Hardness Tester NOVOTEST T-D3 (Lab)
  • Leeb D type probe – 1pc (other types by request)
  • Protective Pouch with Straps for hardness tester T-UD3
  • Leeb Hardness Test Block HLD or HLG (for Leeb probe) – 1pc
  • Set of support rings for Leeb probe
  • Accessory package

“Professional” kit:

  • Electronic unit Leeb Hardness Tester NOVOTEST T-D3 (Lab)
  • Leeb D type probe – 1pc
  • Protective Pouch with Straps for T-UD3
  • Leeb probe Type DL or DC-R or DC-R mini or G
  • Hardness Test Block HLD or HLG (for Leeb probe) – 1pc
  • Set of support rings for Leeb probe
  • Accessory package



“Expert” kit:

  • Electronic unit Leeb Hardness Tester NOVOTEST T-D3 (Lab)
  • Leeb D type probe – 1pc
  • Protective Pouch with Straps for T-UD3
  • Leeb probe Type DL or DC-R or DC-R mini or G
  • Hardness Test Block HLD or HLG (for Leeb probe) – 1pc
  • Set of support rings for Leeb probe
  • Accessory package
