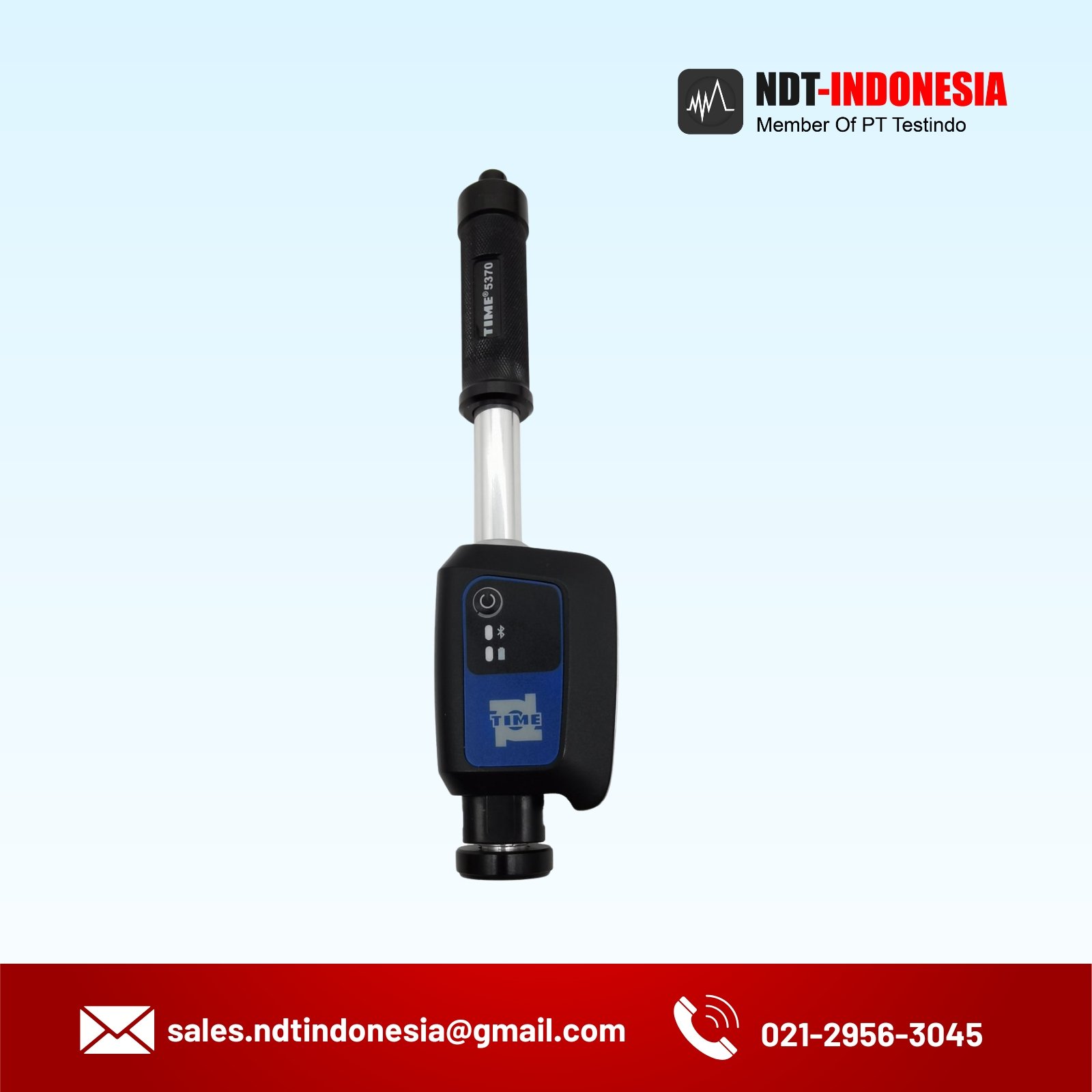

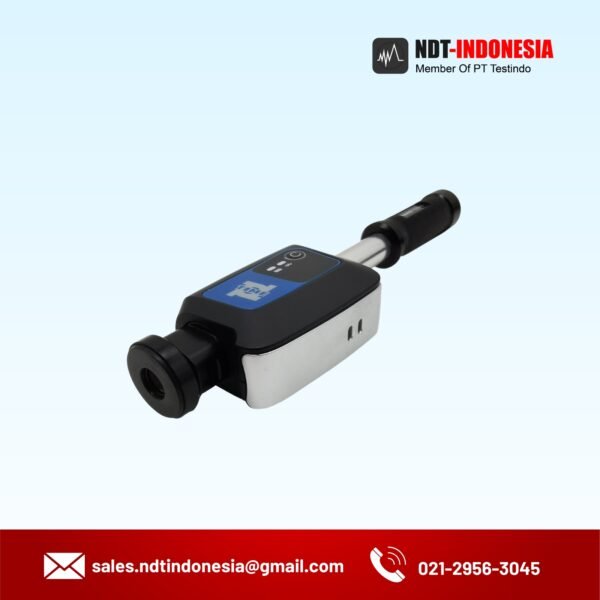

Alat Uji Kekerasan Leeb TIME5370 dari TIME Cloud Platform Resmi Diluncurkan. Perekaman otomatis, berbagi data secara real-time, layanan yang nyaman, membuka era baru pengujian cerdas. Berbagi data kapan pun dan di mana pun. Merekam data pengukuran secara otomatis. Memfasilitasi ketertelusuran proses kendali mutu. Perlindungan IP54. Panggilan satu tombol, pengiriman laporan cepat, layanan di sisi Anda.
Features
●The smart probe can test Leeb hardness by connecting to a mobile phone (currently limited to Android), and the two are connected wirelessly via Bluetooth

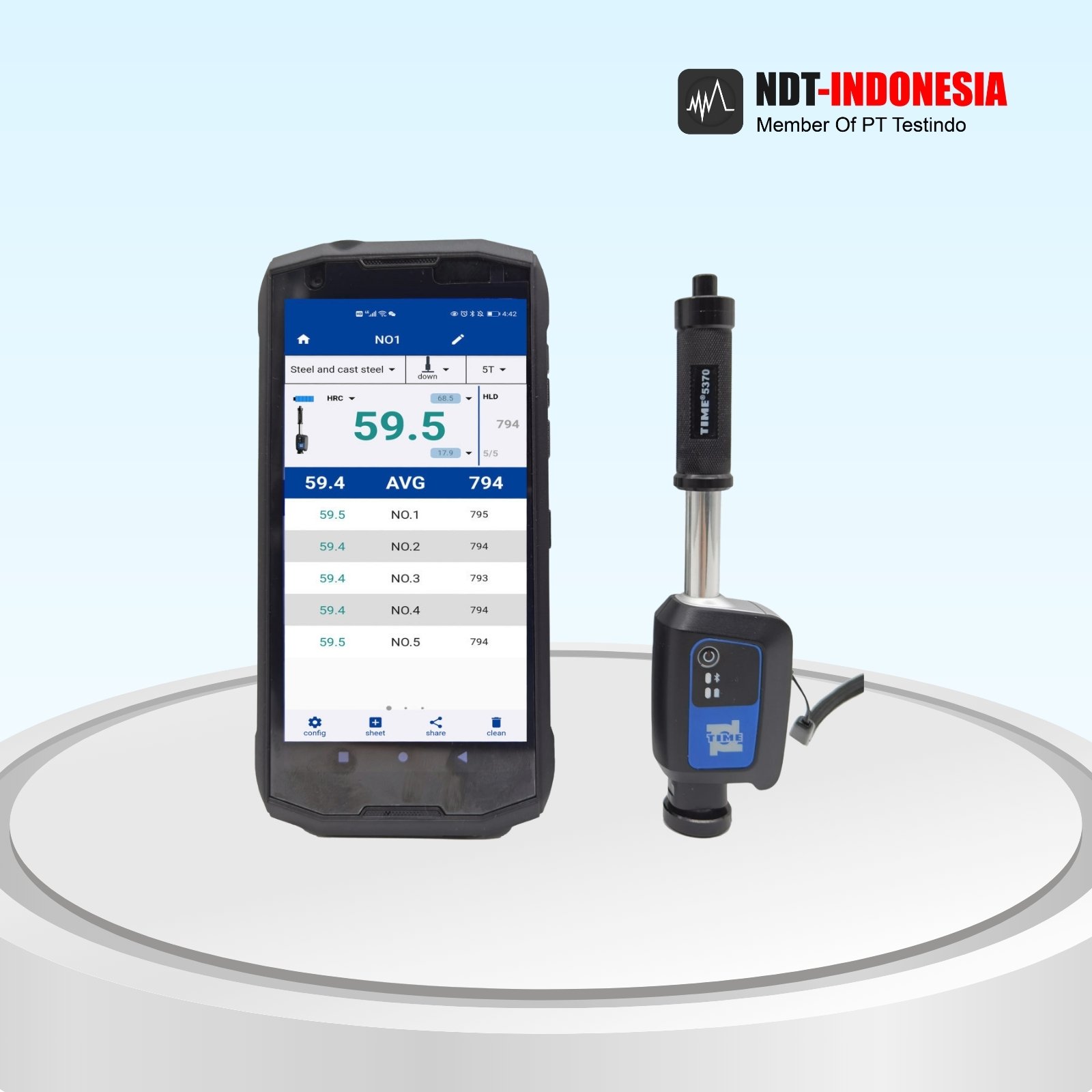

●The hardness value measured by the smart probe can be wirelessly transmitted to the smart phone in real time through the APP "TIME Smart Test"
●The smart probe has good portability, small size, with a lanyard.
●The smart probe uses a built-in rechargeable lithium battery, which can be charged wirelessly.
●The dustproof and waterproof grade of the smart probe reaches IP54, which can adapt to the harsh environment.
●Automatically identify the impact directions.
●The upper and lower limits of the hardness value can be set in advance, and alarm when out of the limits, which is convenient for batch test.
●With self-define material function, users can generate exclusive hardness conversion table through comparison test.
●Measurement records can add multiple types of additional information such as pictures, videos, and positioning.
●It can realize rich post-data processing, such as cloud storage, customized work sheets, real-time data sharing, report generation, etc.
●With automatic shutdown function, and the duration of automatic shutdown can be adjusted or closed.
●The software of the smart probe can be upgraded remotely.
●Smart phones can be connected to the TIME Internet of Things platform to achieve richer functions.
Spesification
| Measuring range |
(170-960)HLD |
| Hardness scale |
HL, HB, HRB, HRC, HRA, HV, HS |
| Measuring direction |
360° |
| Tolerance |
±6HLD(when HLD=760±30) |
| Repeatability |
6HLD(when HLD=760±30) |
| Interface |
Bluetooth 4.2 |
| Continuous working time |
8 hours |
| Power supply |
6V/500mA |
| Humidity |
≤90% |
| Operating temperature |
0℃~40℃ |
| Dimensions (mm) |
158×40×25 |
| Weight (g) |
85 |
Standard Delivery
●Smart probe
●Support ring
●Cleaning brush
●Wireless charger
●Lanyard
●TIME certificate
●Warranty card
●Instruction manual
