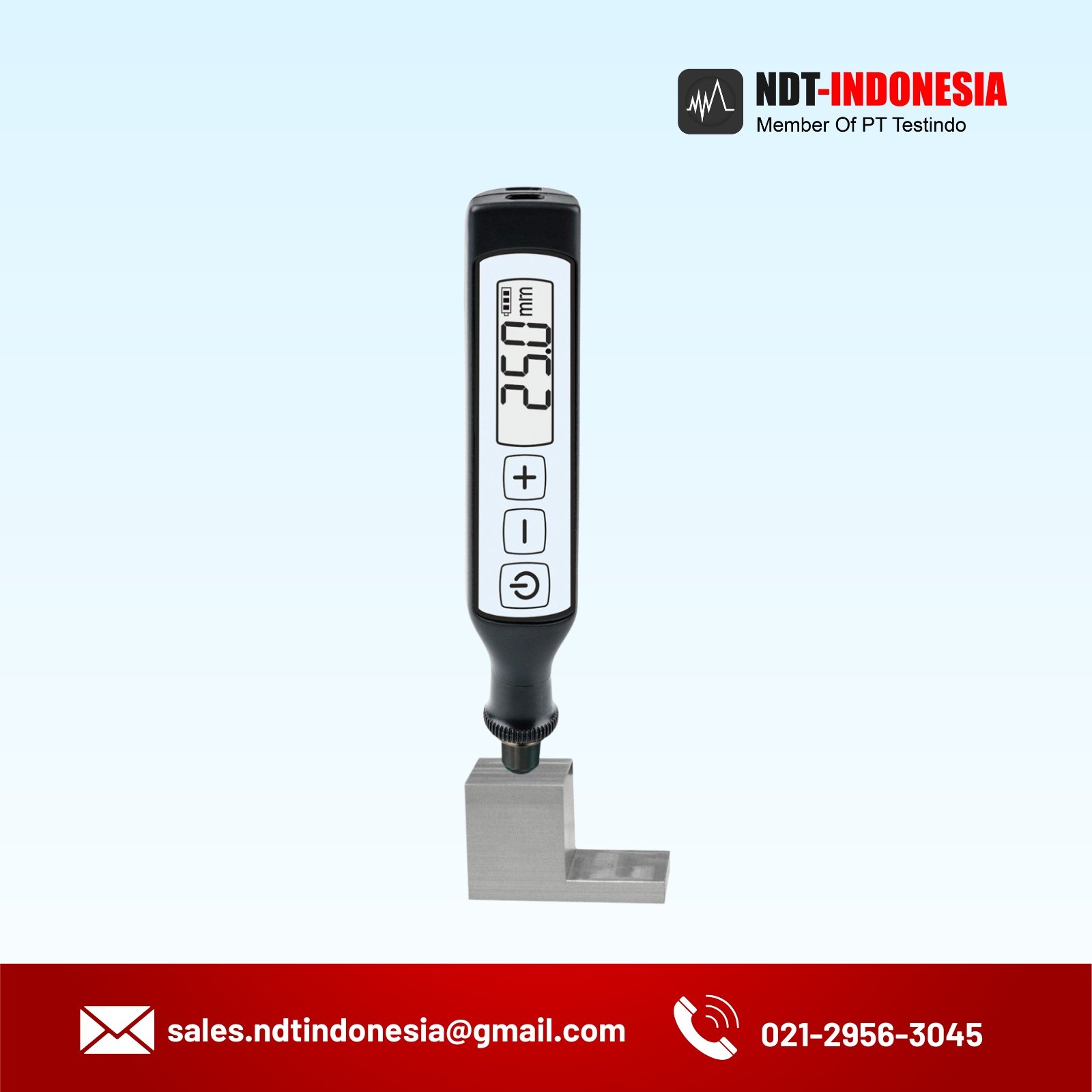

Ultrasonic Thickness Gauges A1207 PENGAUGE

Category: Tags: , , Brand:

Description

Kami memperkenalkan model revisi alat pengukur ketebalan tipe saku yang menggabungkan kemudahan penggunaan dan kenyamanan dengan kemampuan fungsional baru.

Alat pengukur ketebalan ini ditempatkan dalam casing satu bagian dengan ujung yang dapat dilepas. Ujung tersebut memiliki transduser dual-kristal bawaan yang dapat diganti dan tahan aus dengan frekuensi operasi 7 MHz. Transduser kristal tunggal tambahan dapat disertakan dalam paket pengiriman sesuai permintaan.

Diameter kecil permukaan kerja transduser memungkinkan pengujian objek dengan permukaan korosi yang memiliki radius kelengkungan minimum mulai dari 10 mm.

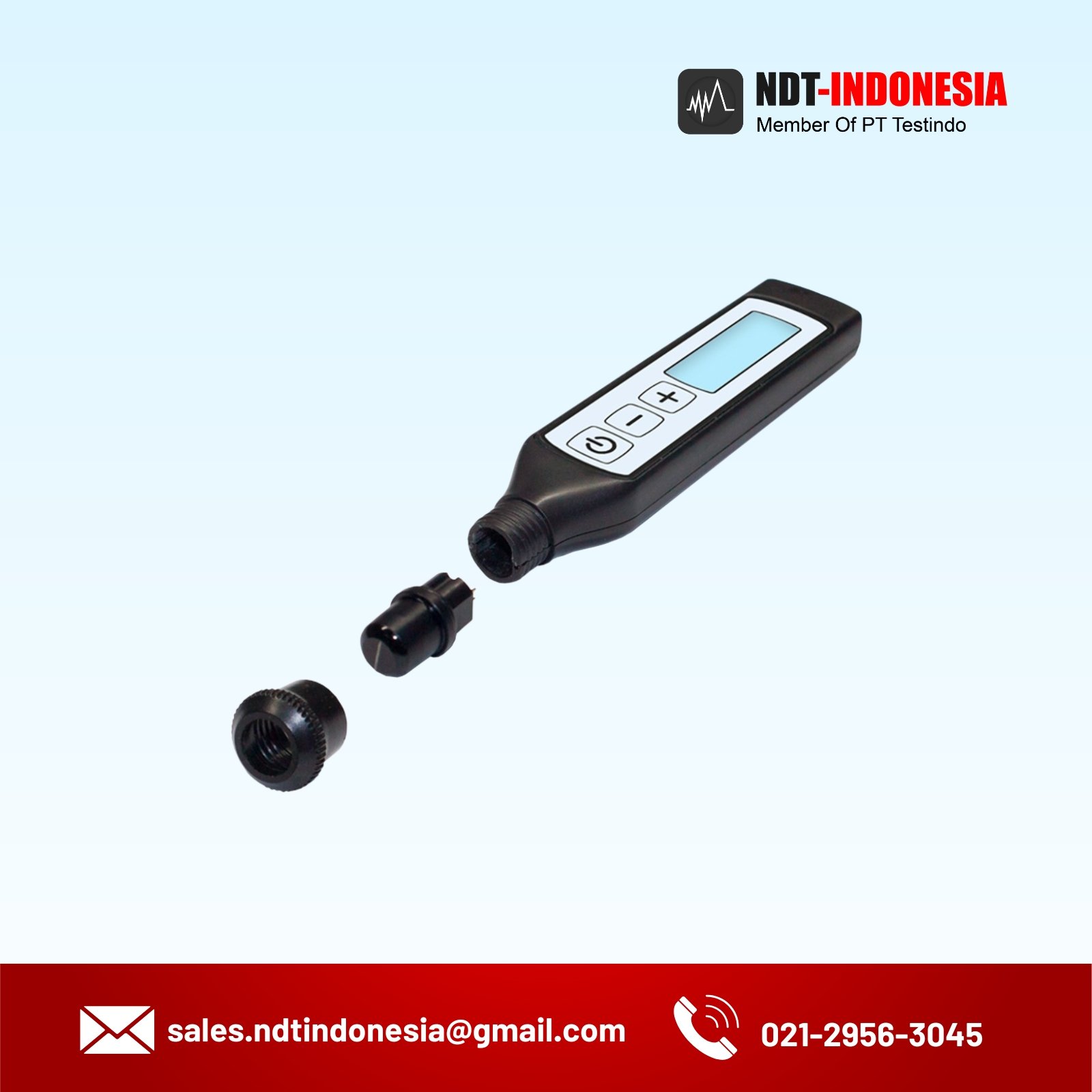

Transduser bawaan yang dapat dilepas pasang saat panas (hot-pluggable) dapat dengan mudah diganti oleh pengguna hanya dengan membuka ulir ujungnya dan melepaskan kapsul transduser dari instrumen tanpa memerlukan alat tambahan.



Specification

Thickness measurement range (for steel) by dual-crystal and single-crystal transducers

0.8 to 50 mm / 0.02 to 2 inch

5 to 150 mm / 0.04 to 6 inch
Type and frequency of the changeable transducer

Standard: dual-crystal, 7 MHz

Optional: single-crystal, 5 MHz
Diameter of the working surface of the dual-crystal and single-crystal transducers

6 mm / 0.24 inch

8 mm / 0.31 inch
Discreteness of measurements representation

0.1, 0.01 mm
Basic measurement accuracy for thickness X, not more:

± (0.005Х + 0.1) mm
Measurement units

mm, inches
Power

built-in LiPol rechargeable battery
Period of continuous operation of the instrument at positive temperatures

up to 16 hours
Operating temperature range

from -30 to +50 ˚С
Overall dimensions

130 х 30 х 20 mm
Weight

50 g

Delivery Kit

  • Instrument with a built-in rechargeable battery
  • Dual-crystal transducer D1572 (10 MHz, dia 6 mm)
  • Calibration samples 5 mm and 25 mm
  • Сouplant
  • Power adapter & USB-cable
  • Finger lanyard

Application

Express ultrasonic inspection of wall thickness of the boilers and vessels, hull plates and other objects made of ferrous and non-ferrous metals, as well as for ultrasonic thickness measurements of the small-diameter metal and plastic pipes (from 20 mm)
  • Hard shell carry case
  • Free App for iOS & Android
  • Optional: Single-crystal transducer S1573 (10 MHz, dia 8mm)
