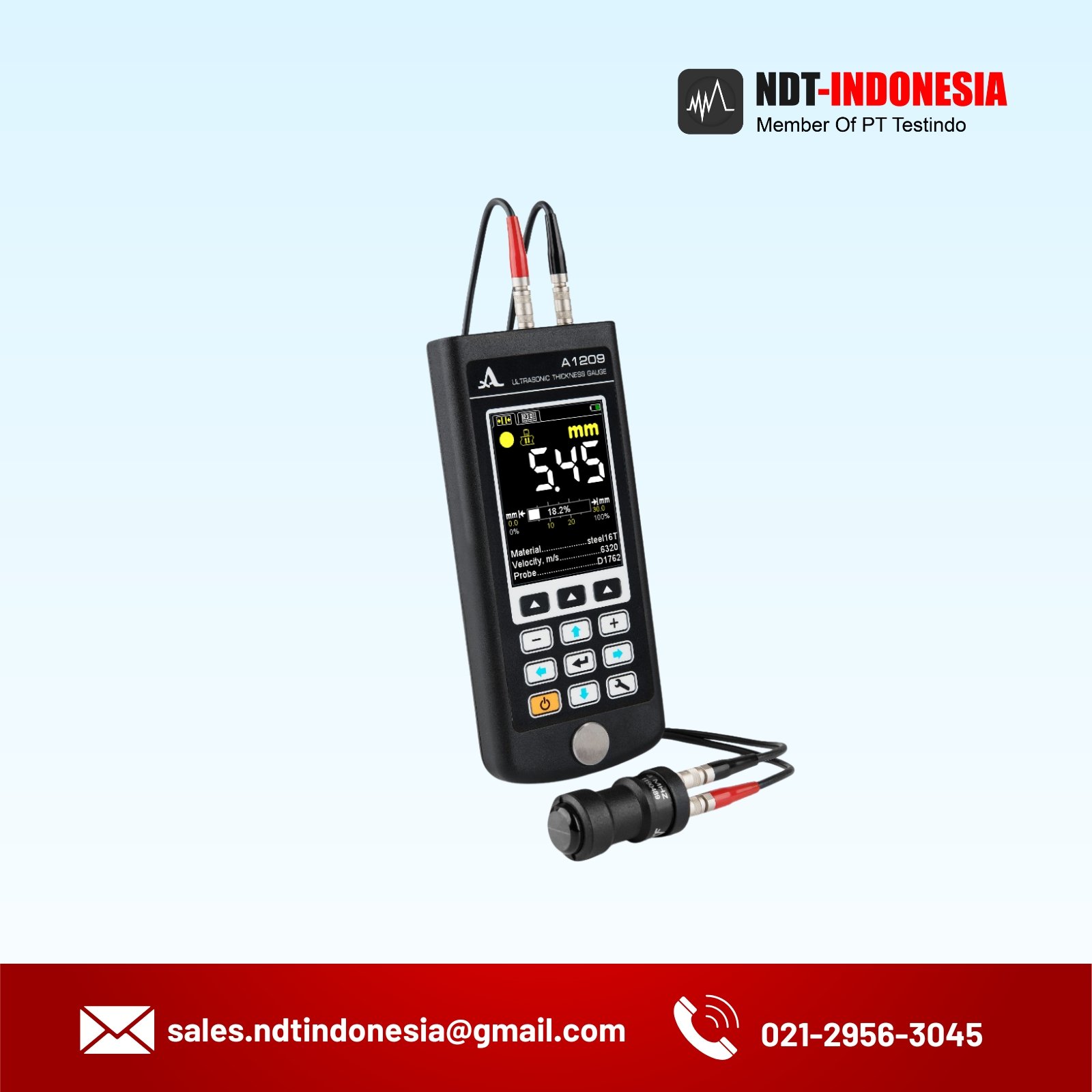

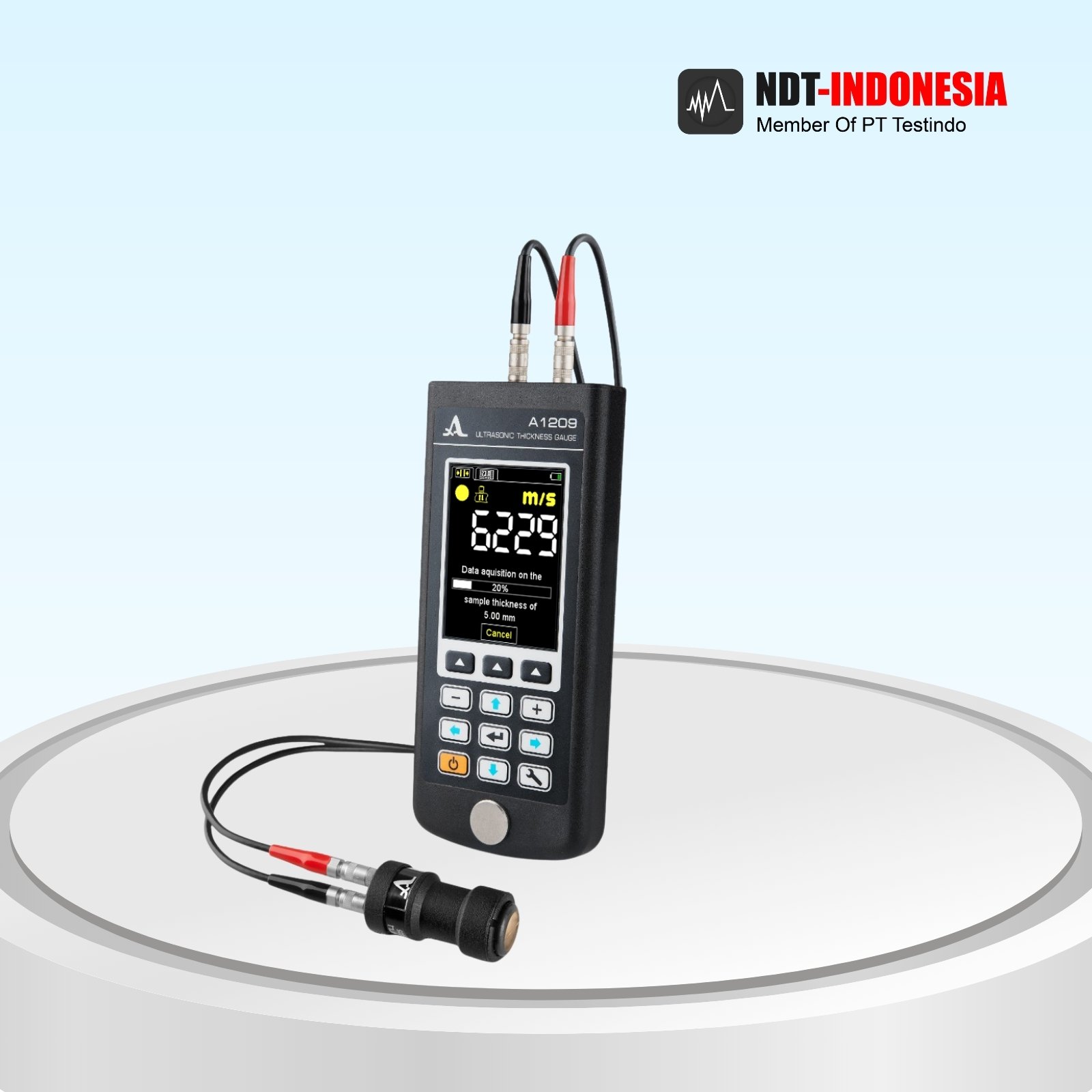

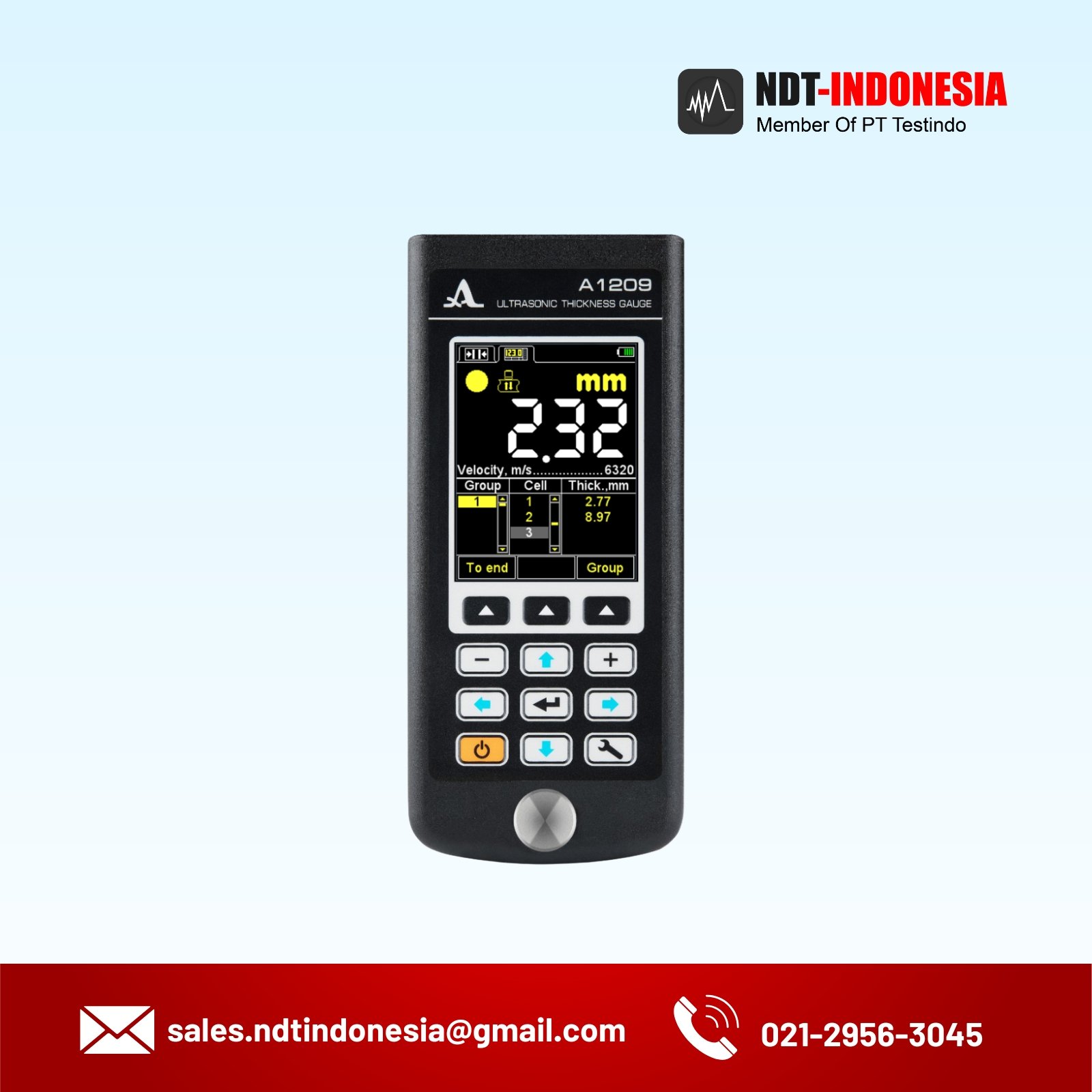

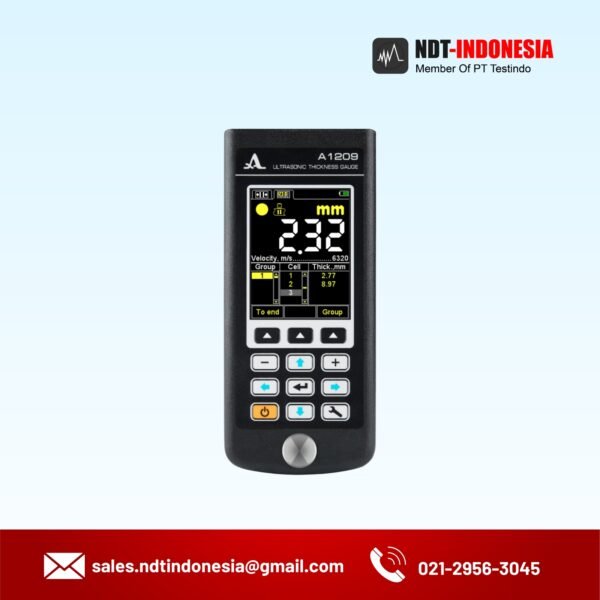

Ultrasonic Thickness Gauges A1209


Universal ultrasonic thickness gauge with large high contrast display, integrated extra functions and various modes of measuring, possibility to work with all double-crystal transducers at the range from 4 to 10 MHz and built in memory – everything to guarantee comfort work at any object of inspection.

The patented algorithm of automatic adaptation to the surface curvature and roughness (dynamical threshold) makes it possible to perform measuring at corroded surfaces with small radius of curvature as well as at flat smooth surfaces without any additional adjustments, which makes the process of inspection much easier and faster.


Thickness measurement range(for steel) with transducer D1771 4.0A0D12CL from 0,7 to 300,0 mm
Discreteness of thickness measuring for thickness range: from 0,7 to 99,99 mm 0,01; 0,1 mm
from 100,0 to 300,0 mm 0,1 mm
Basic measurement accuracy for thickness X, mm not more: for thickness from 0,7 to 3,0 mm ±(0,01Х+0,1) mm
for thickness from 3,01 to 99,99 mm ±(0,01Х+0,05) mm
for thickness from 100,0 to 300,0 mm ±(0,01Х+0,1) mm
Minimum curvature radius 10 mm
Ultrasound velocity range from 500 to 19 999 m/с
Display type TFT
Power built-in LiPol accumulator
Operation time without re-charging 9h
Operating temperature from -20 to +50 °С
Size of the electronic unit 161 х 70 х 24 mm
Weight of the electronic unit 210 g


Thickness measurement of pipes, boilers, vessels and variety of other metal parts.

Thickness measurement of pipe walls, boilers, vessels from metals with surface roughness of up to Rz 160 and curvature radius from 10 mm. Inspection of plastic products can be possible.

Detection of pitting corrosion of more than 4mm2 on the internal surface of the pipe.

The operator can measure the thickness of pipes with thin walls using double-crystal transducer D2763 10.0A0D6CL.

Delivery kit

• A1209 – ultrasonic thickness gauge
• Transducer D1771 4.0A0D12CL
• Double LEMO 00 – LEMO 00 cable 1,2 m
• 220 В – USB adapter
• USB A – Micro B cable
• Soft cover
• Case
