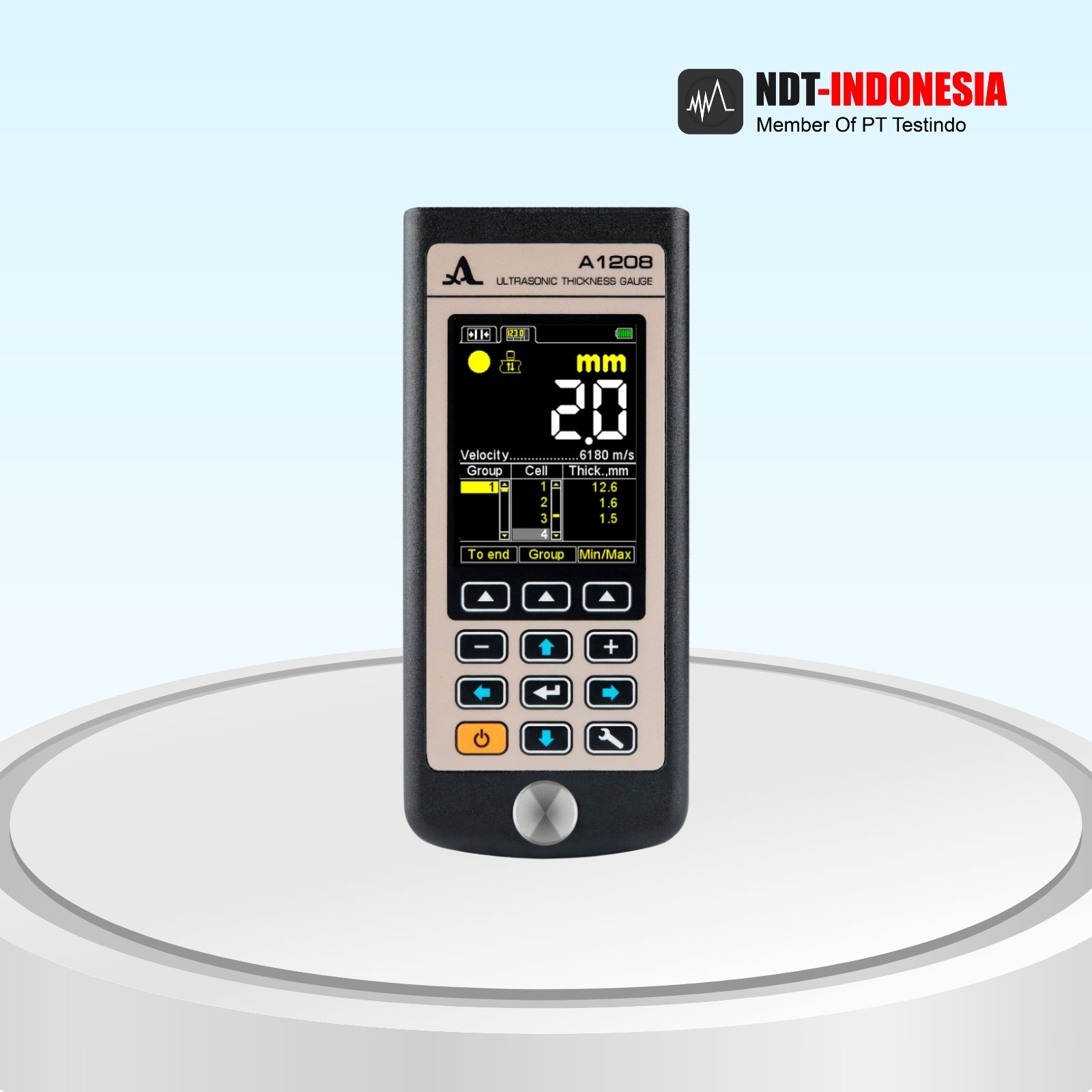

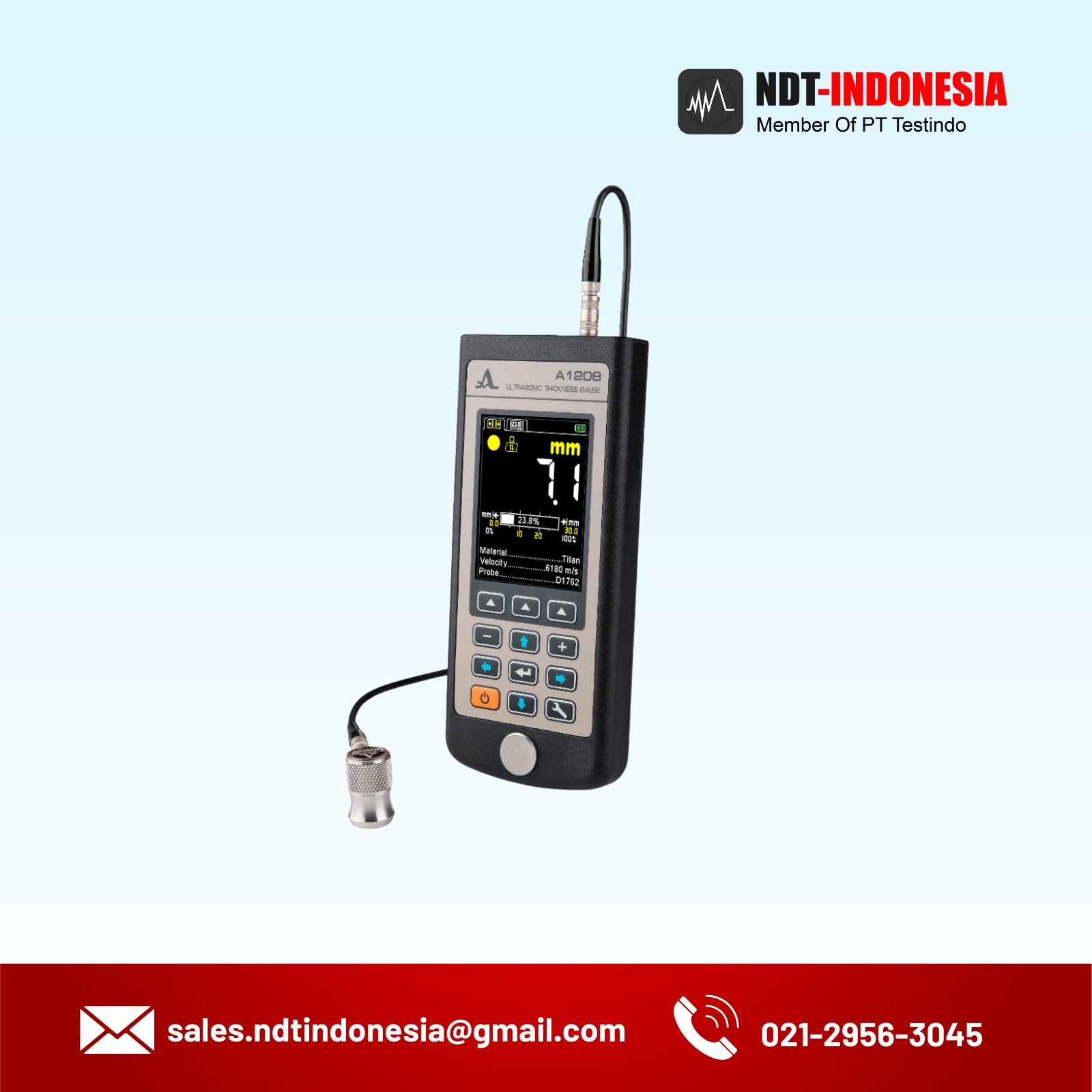

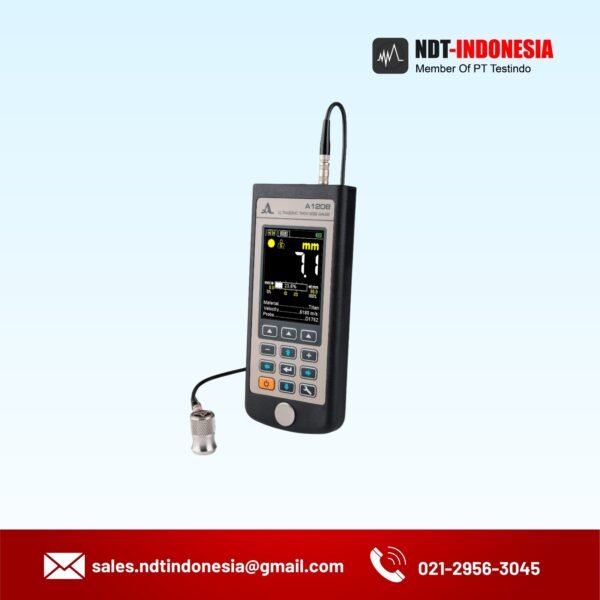

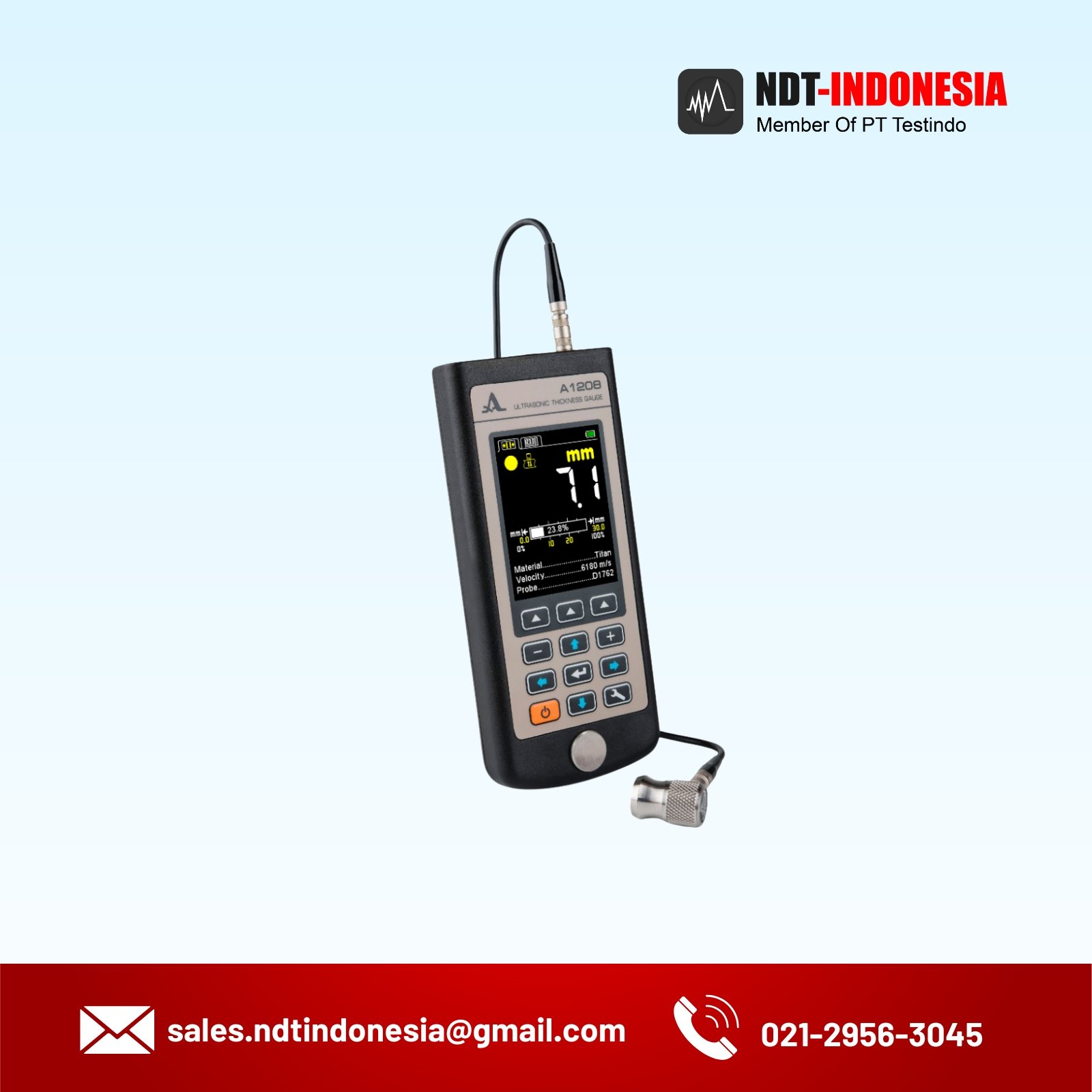

Ultrasonic Thickness Gauges A1208

Description

Alat ukur ketebalan ultrasonik tahan beku untuk kondisi cuaca ekstrem (dari -30˚ hingga +50˚C). Rentang pengukuran ketebalan pada baja adalah dari 0,7 hingga 300 mm. Alat ini dapat bekerja dengan transduser kristal tunggal maupun kristal ganda.

Transduser kristal tunggal tahan aus S3567 2.5A0D10CL digunakan untuk mengukur ketebalan logam, besi tuang, dan material lain dengan redaman ultrasound tinggi

Application

Express ultrasonic inspection of wall thickness of the boilers and vessels, hull plates and other objects made of ferrous and non-ferrous metals, as well as for ultrasonic thickness measurements of the small-diameter metal and plastic pipes (from 20 mm)

Thickness measurement of pipe walls, boilers, vessels from metals with surface roughness of up to Rz 160 and curvature radius from 10 mm. Inspection of plastic products can be possible.

Detection of pitting corrosion of more than 4mm2 on the internal surface of the pipe.

The operator can measure the thickness of pipes with thin walls using double-crystal transducer D2763 10.0A0D6CL.

Spesification

Thickness measurement range(for steel) with transducers: S3567 2.5A0D10CL from 0,8 to 300,0 mm
D2763 10.0A0D6CL from 0,7 to 30,0 mm
Discreteness of thickness measuring for thickness range: from 0,7 to 99,99 mm 0,01; 0,1 mm
from 100,0 to 300,0 mm 0,1 mm
Basic measurement accuracy for thickness X, mm not more: for thickness from 0,7 to 3,0 mm ±(0,01Х+0,1) mm
for thickness from 3,01 to 99,99 mm ±(0,01Х+0,05) mm
for thickness from 100,0 to 300,0 mm ±(0,01Х+0,1) mm
Minimum curvature radius 10 mm
Ultrasound velocity range from 500 to 19 999 m/s
Display type TFT
Power built-in lithium accumulator
Operation time without re-charging 9h
Opeating temperature from -30 to +50 °С
Size of the electronic unit 161 х 70 х 24 mm
Weight of the electronic unit 210 g

Delivery kit

• A1208 – ultrasonic thickness gauge
• Transducer S3567 2.5A0D10CL
• Single LEMO 00 – LEMO 00 cable 1,2 m
• 220 В – USB adapter
• USB A – Micro B cable
• Soft cover
• Case
