Description
OEM Ultrasonic Pulser-Receiver frontend unit for couplant-free thickness measurements by means of electromagnetic acoustic transducers

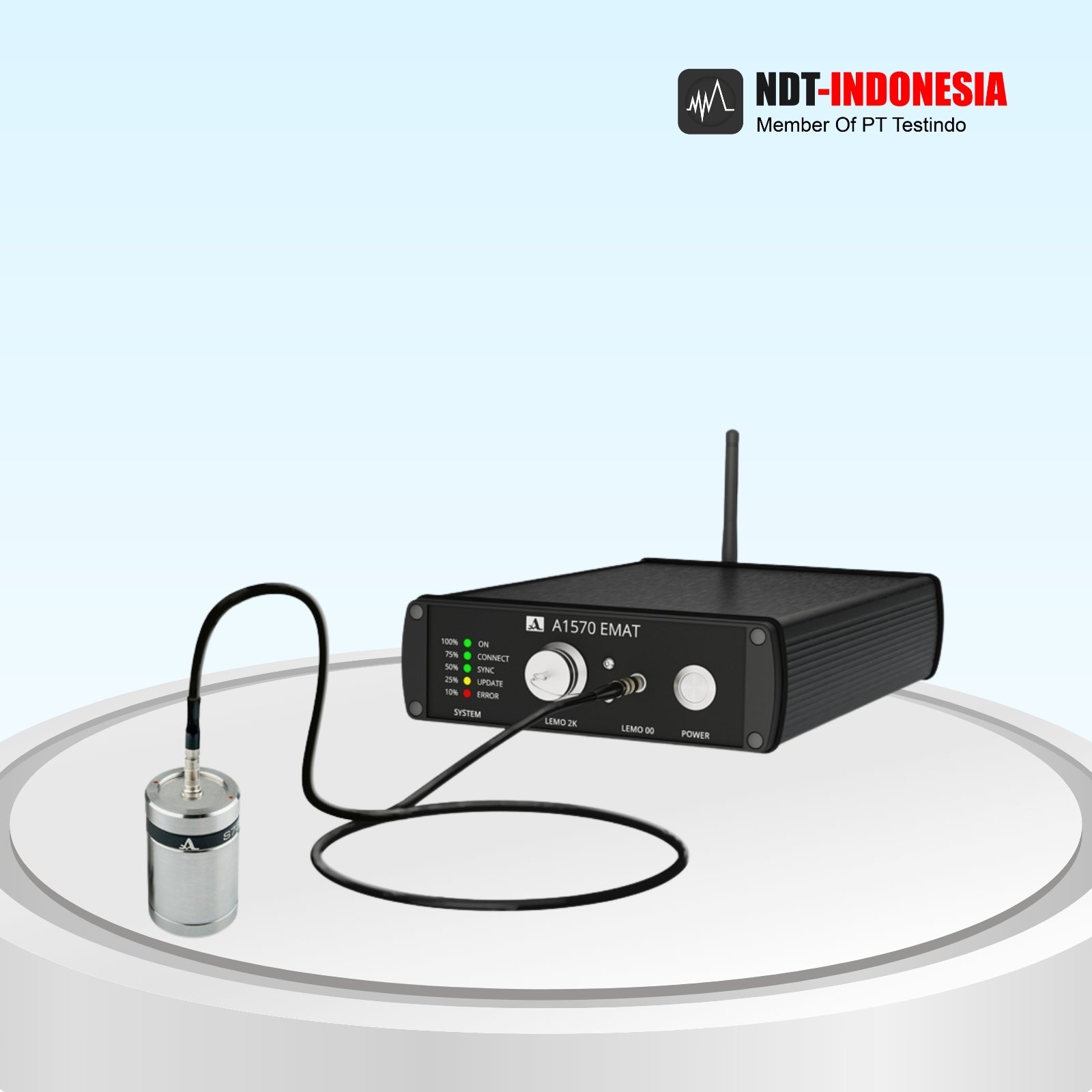

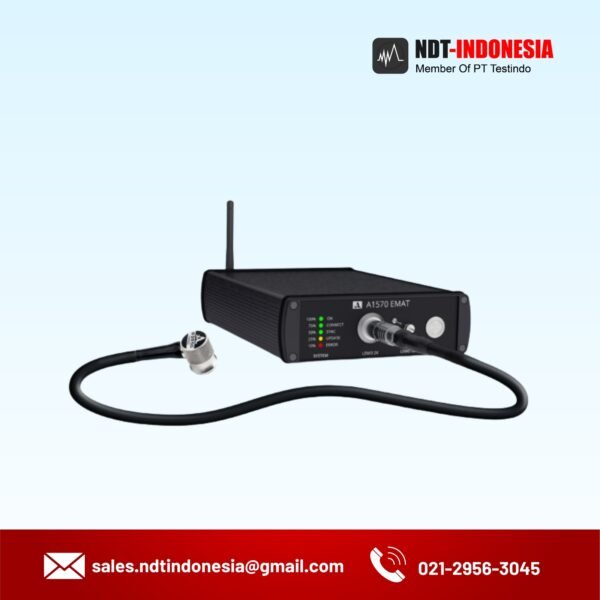

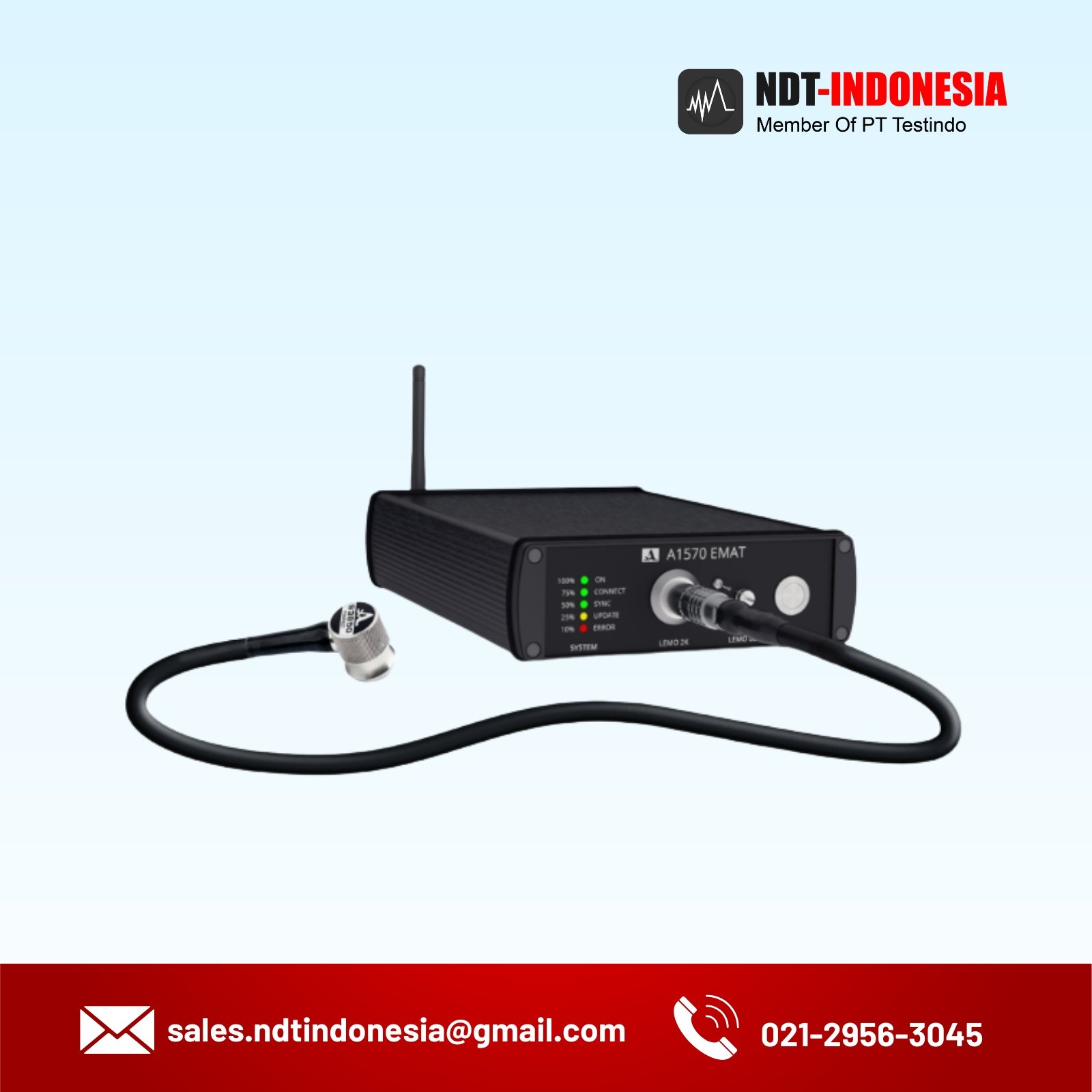

Ultrasonic Thickness Gauge A1570 EMAT (OEM)
Spesification
|
TRANSMITTER |
|
|
Output voltage, Volt |
Bipolar burst ± 200 V, ± 400 V, ± 600 V |
|
Excitation sequence, periods |
0.5 to 9 |
|
Pulse repetition rate, Hz |
up to 60 with the averaging factor 32 |
|
|
|
|
RECEIVER |
|
|
Data acquisition length, Samples |
up to 8 KSamples |
|
Sampling rate, MHz |
25 MHz, 50 MHz, 100 MHz |
|
Receiver bandwidth, MHz |
1 to 15 MHz |
|
Dynamic range of the amplifier including Time Corrected Gain (TCG), dB |
40 dB |
|
Averaging factor |
up to 32 |
|
|
|
|
DATA INTERFACES |
|
|
Ethernet |
up to 100 MBit |
|
WiFi 802.11b/g/n / Bitrate:802.11n |
up to 150Mbps |
|
External trigger output |
TTL + RS485 pulse signal |
|
|
|
|
TRANSDUCER INTERFACES |
|
|
For EMAT with pulse magnetization |
Lemo 2K (EGG.2K.810.CLL1/EGG.2K.810.CLL1) |
|
For EMAT with permanent magnet |
Lemo 00 (ERN.00.250.CTL) |
|
|
|
|
DIMENSIONS & WEIGHT |
|
|
Dimensions of the electronic block |
320 х 165 х 55 mm |
|
Weight of the electronic block |
1650 g |
Application
A1570 EMAT is dedicated to conducting ultrasonic thickness measurements by means of electromagnetic-acoustic transducers. The instrument is suitable for variety of applications, such as:
- Automated and mechanized corrosion testing on pipelines and storage tanks
- Thickness measurements on boiler tubes & heat exchangers
- Ultrasonic measurements on high-temperature objects
- In-Situ ultrasonic stress measurements
Delivery kit
| Name | Quantity, pcs. |
| А1570 – EMA thickness gauge electronic unit | 1 |
| EMA transducer S7394 | 1 |
| Rod-Housing Assembly MH730 | 1 |
| Single LEMO 00 – LEMO 00 cable 2.5 m | 1 |
| Net adaptor with cable 220V-15V | 1 |
| USB A – Micro B cable | 1 |
| Hard case | 1 |
